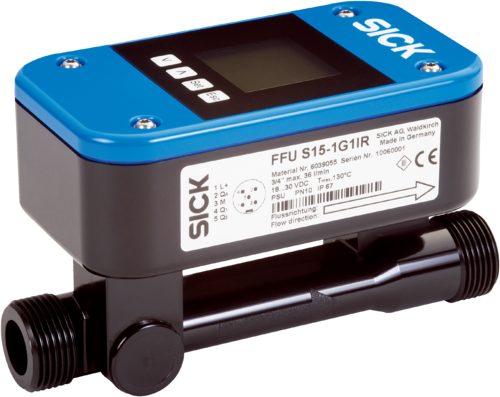

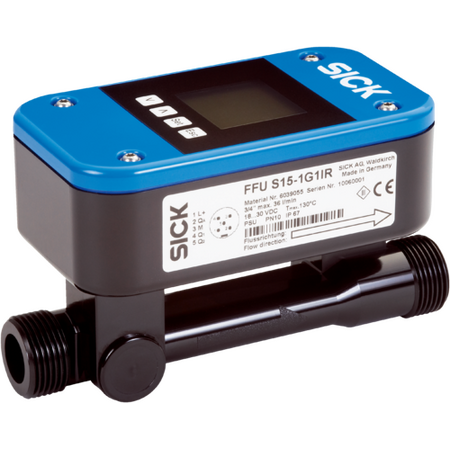

Ultrasonic Flow Sensor DN25 | Accurate Flow Detection | IP67 Rated | by SICK
The Ultrasonic Flow Sensor DN25 is designed for precise fluid flow measurement in industrial applications. With an impressive measurement accuracy of ± 2% and a process temperature range of 0 °C to +80 °C, it’s perfect for monitoring liquid flow in pipelines. Its IP67 rated enclosure ensures protection against dust and water, making it suitable for use in food, beverage, pharmaceutical, and chemical industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ultrasonic Flow Sensor DN25, Fluid Flow Meter, Clamp Connection Flow Sensor
Technical Specifications
- Measurement principle: Ultrasonic sensor
- Medium: Fluids
- Nominal width measuring tube: DN 25
- Process temperature: 0 °C to +80 °C
- Process pressure: ≤ 10 bar
- Minimum flow: ≥ 5 l/min
- Maximum flow: ≤ 240 l/min
- Inlet zone: 40 cm
- Output zone: 20 cm
- Conductivity: No limitation
- Measurement accuracy: ± 2% of measured value + 0.15% of measuring range limit
- Repeatability: ≤ 0.5%
- Resolution: 0.03 l/min
- Response time: 100 ms, 300 ms, 1 s, 4.2 s options
- Supply voltage: 18 V DC to 30 V DC
- Residual ripple: ≤ 5 V pp
- Power consumption: ≤ 180 mA
- Switch-on time: ≤ 5 s
- Connection type: M12 round connector, 8-pin
- Output signal: Analog output 4 mA to 20 mA, pulse/status output PNP/NPN transistor
- Output current: < 100 mA
- Output load: < 500 Ohm
- Lower signal level: 3.8 mA to 4 mA
- Upper signal level: 20 mA to 20.5 mA
- Impulse/frequency output: 0 kHz to 10 kHz
- Pulse width: ≤ 1 s
- Inductive load: 1 H
- Capacitive load: 100 nF
- Enclosure rating: IP67
- Process connection: Clamp (DIN 11864-3)
- Wetted parts: PPSU, EPDM
- Housing material: PPSU
- Dimensions (H x L x W): 50mm x 120mm x 80mm
- Weight: 0.46 kg
Key Features
- Ultrasonic sensor measurement principle for accurate flow detection
- Suitable for fluids with nominal width DN 25 measuring tube
- Process temperature range from 0 °C to +80 °C
- Process pressure up to 10 bar
- High measurement accuracy of ± 2% of measured value plus 0.15% of measuring range limit
- Repeatability of ≤ 0.5%
- Resolution of 0.03 l/min
- Fast response time options from 100 ms to 4.2 s
- Analog output signals with 4 mA to 20 mA current flow
- Pulse/status output for flow rate meter and empty pipe detection
- IP67 rated enclosure for protection against dust and water
- Clamp process connection (DIN 11864-3) with PPSU and EPDM wetted parts
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ultrasonic flow sensors and compliant with local safety standards.
Applications
- Fluid flow measurement in industrial processes
- Monitoring and control of liquid flow in pipelines
- Use in food and beverage, pharmaceutical, and chemical industries
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-invasive ultrasonic measurement reduces contamination risk and fluid waste
- Durable materials extend product life and reduce replacement frequency
- Low power consumption enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK FFUS25-1C1SR Ultrasonic Flow Sensor is available for immediate purchase, ideal for industrial fluid flow measurement applications.
