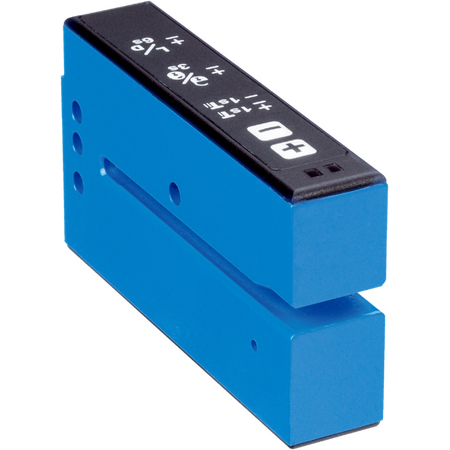

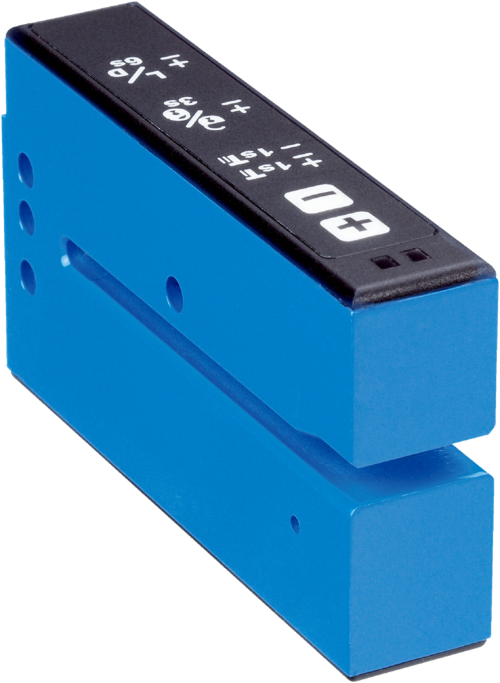

Ultrasonic Fork Sensor UFN3-70B413 IP65 Rated Fast Response Time (1.5 kHz Switching Frequency) SICK

BRAND: SICK
SKU: 6049678
$1,395.40 List price: $1,753.80
+ −
30 Days Return Electricians Unlock Trade Access
The Ultrasonic Fork Sensor UFN3-70B413 is designed for reliable label detection and object sensing in industrial automation.
Technical Specifications
  • Supply voltage: 10 V DC to 30 V DC
  • Current consumption: 40 mA
  • Switching frequency: 1.5 kHz
  • Response time: ≤ 250 µs
  • Switching output: PNP and NPN options
  • Output current max: 100 mA
  • Enclosure rating: IP65
  • Housing material: Aluminum
  • Connection type: Male connector M8, 4-pin
  • Ambient operating temperature: +5 °C to +55 °C
  • Storage temperature: -20 °C to +70 °C
  • Shock load compliant with EN 60068-2-27
  • EMC compliant with EN 60947-5-2
  • Dimensions (H x L x W): 47.5mm x 92.5mm x 18mm
  • Weight: 0.1 kg
Key Features
  • Ultrasonic detection principle for reliable sensing
  • Fork shaped aluminum housing with 3 mm fork width
  • 2-point and dynamic teach-in modes for easy adjustment
  • Light/dark switching with plus/minus button for sensitivity control
  • IP65 rated enclosure for protection against dust and water
  • Short-circuit protected output with interference pulse suppression
  • High switching frequency of 1.5 kHz and fast response time ≤ 250 µs
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
  • Label detection in packaging and printing industries
  • Object detection in automation and manufacturing processes
  • Quality control for gap and label size measurement
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Non-contact ultrasonic sensing reduces wear and tear, extending product life
  • Energy-efficient operation with low current consumption (40 mA)
  • Robust design minimizes waste and replacement frequency
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK UFN3-70B413 Ultrasonic Fork Sensor is available for immediate purchase, ideal for industrial automation and label detection applications.
