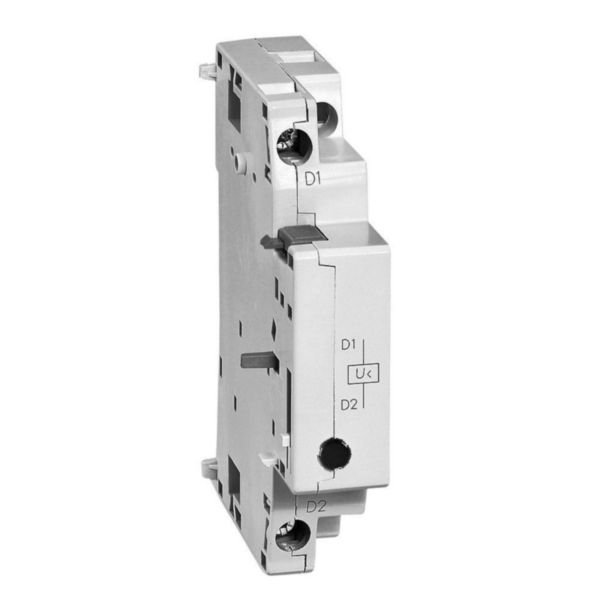

Undervoltage Release 2NO | 110V AC | Side Mounting | Screw Connection | @EA of 1 | by Legrand
The Undervoltage Release 2NO is designed for 110V AC applications, featuring two normally open contacts and a screw connection for reliable electric connections. Ideal for tertiary and industrial installations, this device enhances electrical safety and is perfect for motor safety switch applications, ensuring compliance and efficiency in your electrical systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Undervoltage Release 2NO | 110V AC | Side Mounting | Screw Connection | @EA of 1 | by Legrand
Brand: Legrand
SKU: 417431
Alternatively Known As: Undervoltage Release 110V AC, MPX3 Undervoltage Trip, Auxiliary Contact Undervoltage Release
Technical Specifications
- Rated control supply voltage AC 50 Hz: 93.5-121 V
- Rated control supply voltage AC 60 Hz: 93.5-121 V
- Voltage type for actuating: AC
- Number of normally open contacts: 2
- Number of normally closed contacts: 0
- Number of change-over contacts: 0
- Type of electric connection: Screw connection
- Delayed operation: No
- Suitable for motor safety switch: Yes
- Not suitable for power circuit breaker, off-load switch, or overload relay
- Dimensions (H x L x W): 80mm x 40mm x 50mm
- Weight: 0.2 kg
Key Features
- Rated voltage 110V AC (50/60Hz)
- 2 Normally Open (NO) auxiliary contacts
- Side mounting on the right side of the breaker
- Not compatible with MPX3 32S
- Screw connection type for electric connection
- Designed specifically for tertiary and industrial installations
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with industrial control equipment and Legrand products to ensure safety and compliance.
Applications
- Tertiary and industrial electrical installations
- Motor safety switch applications
- Control and signalling in switchboards and power cabinets
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances electrical safety reducing risk of equipment damage and energy waste
- Supports efficient motor control contributing to energy savings
Warranty Information
Standard Legrand warranty applies, typically 1 year against manufacturing defects.
Available Now
Legrand Undervoltage Release 2NO built-in 110V AC for MPX3 is available for immediate purchase, ideal for tertiary and industrial motor safety switch applications.
