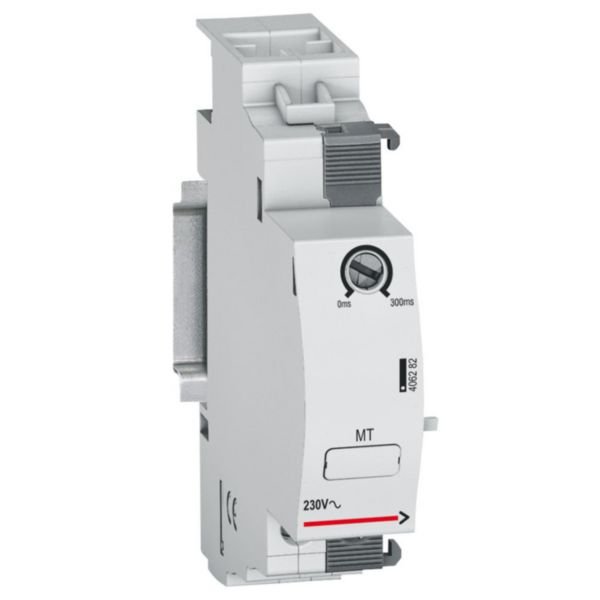

Undervoltage Release DX³ 230V AC | Adjustable Time Delay 0-300 ms | 1 Module Wide | by Legrand

BRAND: Legrand
SKU: 406282
$287.40 List price: $358.20
+ −
30 Days Return Delivery Options
The Undervoltage Release DX³ 230V AC features an adjustable time delay from 0 to 300 ms, making it ideal for enhancing safety in electrical switchboards and power cabinets. Designed for professional installation, this universal device fits seamlessly into existing systems, ensuring reliable protection and control of MCBs and isolating switches.

Product Name/Title: Undervoltage Release DX³ 230V AC | Adjustable Time Delay 0-300 ms | 1 Module Wide | by Legrand

Brand: Legrand

SKU: 406282

Alternatively Known As: Undervoltage Release DX3 230V AC, DX3 Undervoltage Coil, Adjustable Time Delay Undervoltage Release

Technical Specifications
  • Time delay adjustable from 0 to 300 ms
  • Rated voltage: 230 V AC
  • Width: 1 module (20 mm)
  • Height: 83 mm
  • Depth: 71.5 mm
  • Universal device fitting
  • No normally open, normally closed, or change-over contacts
  • Suitable for max. 4 poles main contact unit
  • Suitable for max. current main contact unit: 125 A
  • No auto test for earth leakage function
  • Dimensions (H x L x W): 83mm x 72mm x 20mm
  • Weight: 0.1 kg
Key Features
  • Time delay adjustable from 0 to 300 ms
  • 1 module wide design
  • Compatible with TX3 and DX3 ranges
  • No tool required for joining auxiliary and main device
  • Allows insertion of supply busbar from top side
  • Universal device fitting
  • Rated voltage: 230 V AC
  • Suitable for max. 4 poles main contact unit
  • Suitable for max. current main contact unit of 125 A
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper integration with existing electrical systems.
Applications
  • Electrical switchboards and power cabinets
  • Copper distribution systems
  • Protection and control of MCBs, RCBOs, RCCBs, isolating switches
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Enhances electrical system safety and reliability, reducing risk of electrical faults and associated environmental hazards.
Warranty Information

Standard Legrand warranty applies, typically 2 years against manufacturing defects.

Available Now

The Legrand Undervoltage Release DX³ 230V AC with adjustable time delay is available for immediate purchase, ideal for enhancing safety and control in electrical switchboards and copper distribution applications.
