Uninsulated Ring Terminal 2.5-6.0mm² | 8mm Stud | Copper Construction & Soldered Seam | 600V by Cabac

BRAND: CABAC
SKU: RTU5.5-8
$19.10 List price: $23.20
+ −
30 Days Return Delivery Options

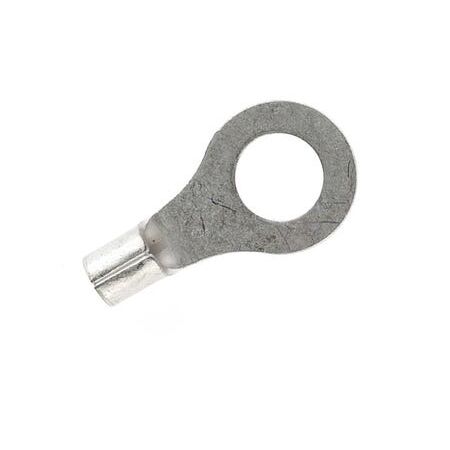

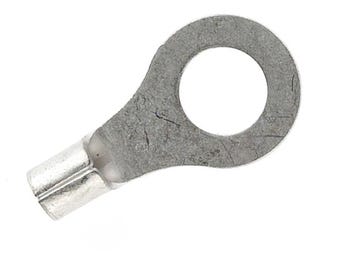

The Cabac Uninsulated Ring Terminal with 8MM stud is designed for 2.5-6.0mm² cables, offering strong, reliable electrical connections with high-quality copper construction and tin plating.

Product Name/Title: UNINSULATED RING TERMINAL (2.5-6.0MM2 CABLE) 8MM STUD

Brand: Cabac

SKU: RTU5.5-8

Alternatively Known As: Uninsulated Ring Terminal 8mm, Copper Ring Terminal, Electrical Ring Connector, Tin Plated Ring Terminal

Technical Specifications
  • Cable Size: 2.5-6.0mm²
  • Stud Size: 8mm
  • Material: 99.9% annealed copper, tin electroplated
  • Max Voltage: 600V
  • Max Operating Temperature: 150°C
  • Connection Type: Uninsulated ring terminal with soldered seam
  • Dimensions (H x L x W): 15mm x 25mm x 8mm
  • Weight: 0.01 kg
Key Features
  • Soldered seam for added strength
  • Made from 99.9% annealed copper, tin electroplated
  • High quality product meeting international standards
  • Max voltage rating of 600V
  • Max operating temperature of 150 degrees Celsius
Professional Installation Requirements
  • Installation by a qualified electrician is recommended to ensure safe and compliant electrical connections.
Applications
  • Electrical wiring connections in automotive, industrial, and household electrical systems
  • Suitable for use in power connectivity and terminal connections
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Made from recyclable copper material
  • Durable construction reduces need for frequent replacements
Warranty Information

Standard manufacturer warranty against defects applies.

Available Now

The Cabac Uninsulated Ring Terminal 8MM Stud is available for immediate purchase, ideal for electrical wiring and power connectivity applications.
