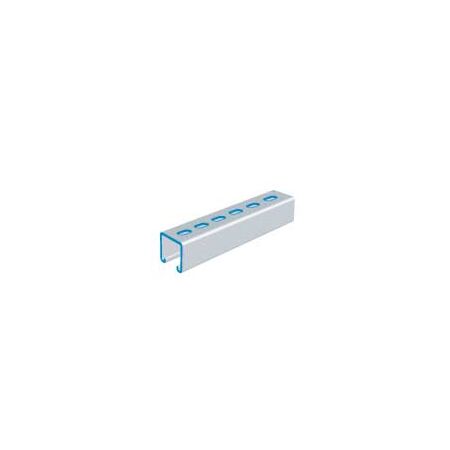

Heavy Duty Slotted Channel | 14Kg | 6M Length
Heavy duty slotted channel with 14Kg weight and 6M length—ideal for construction and industrial applications. Built for strength and durability, with Galvabond finish for corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heavy Duty Slotted Channel | 14Kg | 6M Length
SKU: P1000T-GB
Alternatively Known As: Unistrut Channel, Slotted Steel Channel, Metal Framing Channel, Steel Support Channel, Strut Channel
Technical Specifications
- Material: Rolled strip steel to AS1594 and AS1365 standards.
- Finish options: Plain, Hot Dipped Galvanised, Galvabond, Zinc Plated, Polyester.
- Length: 6 meters.
- Weight: 14 Kg per channel.
- Construction: Spot-welded combination members welded 75mm on centre; some members may require fillet welding.

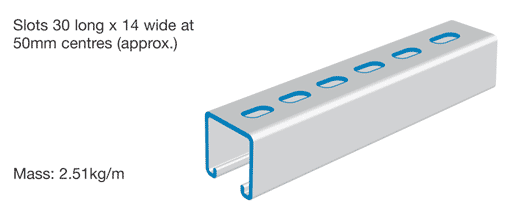

- Dimensions (H x L x W): 41mm x 6000mm x 41mm
- Weight: 14 kg
Key Features
- Channel edges and nut’s tapered grooves provide positive alignment of connection.
- Nut teeth grip the channel’s inturned edges, tying the channel sides together in a box configuration for added strength.
- Longitudinal movement of nut is resisted as hardened teeth bite into the inturned edges.
- Available in Plain, Hot Dipped Galvanised, Galvabond, Zinc Plated and Polyester finishes.
- Adjustable, demountable, and reusable design.
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with structural framing and welding techniques to ensure safety and compliance.
Applications
- Construction: Structural support and framing
- Electrical: Cable management and conduit support
- Mechanical: Equipment mounting and bracing
- Industrial: Adjustable and reusable support systems
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Reusable and adjustable design reduces material waste.
- Durable finishes extend product life, minimizing replacement frequency.
Warranty Information
Warranty terms available upon request; subject to manufacturer’s standard warranty policies.
Available Now
The Heavy Duty Slotted Channel is available now for immediate purchase. Ideal for construction, electrical, mechanical, and industrial support applications.
