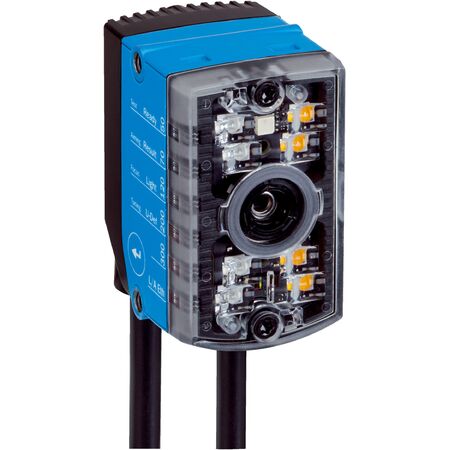

V2D611R-MLSBE5 Barcode Reader CMOS Monochrome Sensor Teach Auto Focus SICK
The SICK V2D611R-MLSBE5 barcode reader features a high-resolution CMOS monochrome sensor and teach auto focus
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1,280 px x 960 px (1.2 Mpixel)
- Optical focus: Teach auto focus (liquid lens)
- Illumination: Integrated amber (617 nm) and blue (470 nm) LEDs
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Scanning frequency: 40 Hz
- Code resolution: 0.05 mm
- Working range: 50 mm to 300 mm
- Connection types: M12 male connector (17-pin), M12 Ethernet socket (4-pin), circular plug-in connector
- Supply voltage: 12 V DC to 24 V DC ±15%
- Power consumption: Typical 3.5 W
- Output current: ≤ 50 mA
- Housing material: Zinc diecast, color light blue (RAL 5012)
- Window material: Plastic
- Enclosure rating: IP65 (EN 60529)
- Protection class: III
- Electrical safety: EN 62368-1
- Readable code structures: 1D, 2D, stacked codes
- Supported barcode types: GS1-128, UPC, EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, Plessey, MSI/Plessey, Telepen, postal codes
- Supported 2D code types: Data Matrix ECC200, GS1 Data-Matrix, PDF417, QR code, MaxiCode
- Code qualification standards: ISO/IEC 16022, 15415, 15416, 18004
- Number of codes per reading interval: 1 to 50
- Number of characters per reading interval: 500 (multiplexer function in CAN operation)
- Exposure time: ≥ 60 µs
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial RS-232, CAN, CANopen
- Digital inputs: 2 physical switching inputs
- Digital outputs: 3 physical switching outputs
- Optical indicators: 9 LEDs including status displays and alignment aids
- Control elements: 1 pushbutton
- Operator interface: Web server
- Configuration software: SOPAS ET
- Data storage: Image and data storage via external FTP
- Encoder frequency max: 300 Hz
- External illumination control: Via digital output (max 24 V trigger)
- Ambient operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Permissible relative humidity: 90%, non-condensing
- Electromagnetic compatibility: EN 61000-6-3:2007+A1:2011, EN 61000-6-2:2005-08
- Vibration resistance: EN 60068-2-6:2008-02
- Shock resistance: EN 60068-2-27:2009-05
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.165 kg
Key Features
- Complete device with teach auto focus (liquid lens)
- CMOS monochrome sensor with 1,280 px x 960 px resolution
- Integrated amber and blue LED illumination
- Laser class 1 compliant with IEC and FDA standards
- Reads 1D, 2D, and stacked codes including GS1-128, QR code, Data Matrix ECC200
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial RS-232, CAN, and CANopen
- IP65 rated zinc diecast housing for robust industrial use
- Automated parameter switching and web server operator interface
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems to ensure proper setup and compliance with electrical safety standards.
Applications
- Industrial automation for barcode and 2D code reading
- Logistics and warehousing for package tracking
- Manufacturing for quality control and product identification
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption at approximately 3.5 W reduces energy usage
- Durable zinc diecast housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D611R-MLSBE5 barcode and 2D code reader is available for immediate purchase, ideal for industrial automation, logistics, and manufacturing applications.
