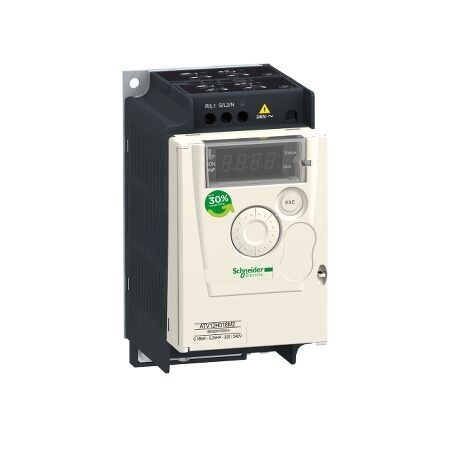

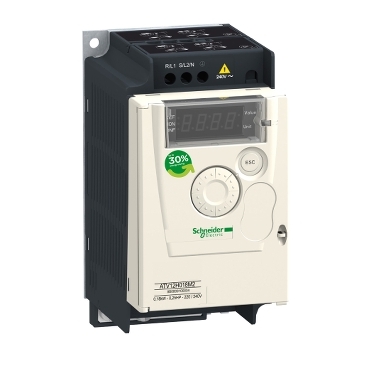

Variable Speed Drive 0.18kW 240V 3PH | Compact Design | Integrated EMC Filter | Modbus Communication | @Pack of 1 | by Clipsal
The Variable Speed Drive 0.18kW 240V 3PH is designed for efficient control of 3-phase asynchronous motors, making it ideal for industrial automation and HVAC systems. With a compact design, integrated EMC filter, and Modbus communication, it ensures simple setup and operation while optimizing energy efficiency and reducing operational costs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Speed Drive 0.18kW 240V 3PH | Compact Design | Integrated EMC Filter | Modbus Communication | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV12H018M3
Alternatively Known As: ATV12H018M3, Schneider ATV12, Variable Speed Drive 0.18kW, ATV12 Inverter, 0.18kW VSD, ATV12 3-Phase Drive
Technical Specifications
- Power: 0.18kW (0.25HP)
- Input voltage: 200-240V single-phase
- Output voltage: 200-240V 3-phase
- Output current: 1.3A
- Frequency range: 0.5 to 400Hz
- Integrated EMC filter
- Modbus communication port
- Operating temperature: -10°C to +50°C
- Degree of protection: IP20
- Dimensions (H x L x W): 143mm x 131mm x 72mm
- Weight: 1.2 kg
Key Features
- Compact variable speed drive for 3-phase asynchronous motors
- Power rating: 0.18kW (0.25HP)
- Input voltage: 200-240V single-phase
- Output: 3-phase 200-240V
- Integrated EMC filter
- Simple setup and operation
- Integrated Modbus communication
- Overload and short-circuit protection
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and manufacturer instructions.
Applications
- Industrial automation
- HVAC systems
- Pumps and fans
- Conveyors
- Machine tools
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves energy efficiency by optimizing motor speed
- Reduces mechanical wear and maintenance
- Supports lower power consumption and operational costs
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
The Clipsal ATV12 0.18KW 240V 3PH Variable Speed Drive (SCHATV12H018M3) is available for immediate purchase. Ideal for industrial automation, HVAC, and motor control applications.
