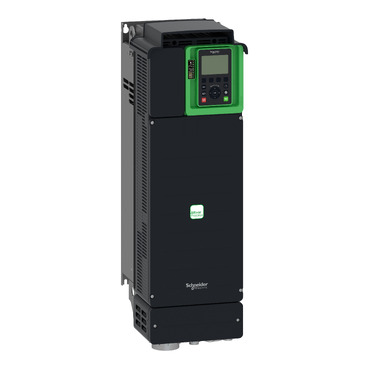

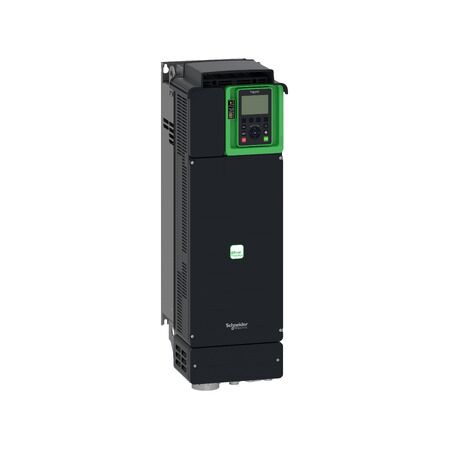

Variable Speed Drive 30kW IP21 Protection 400V 480V Input Clipsal
The Variable Speed Drive 30kW is designed for heavy-duty applications, featuring IP21 protection for indoor use and supporting 400V 480V three-phase input.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Speed Drive 30kW | IP21 Protection | 400V/480V Input | Advanced Motor Control | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV630D30N4
Alternatively Known As: Variable Speed Drive 30kW, VSD 30kW 400V, Clipsal VSD 30kW, Schneider ATV630D30N4, 30kW Frequency Inverter, 30kW Motor Drive
Technical Specifications
- Power Rating: 30kW (40HP)
- Input Voltage: 380-480V AC, 3-phase
- Output Voltage: 0-480V AC, 3-phase
- Input Frequency: 50/60Hz
- Output Frequency: 0.1-500Hz
- Enclosure: IP21 (indoor use)
- Control Method: Vector control, V/F control
- Integrated EMC filter
- Communication: Modbus, Ethernet (optional)
- Display: Integrated LCD keypad
- Operating Temperature: -15°C to +50°C
- Dimensions (H x L x W): 520mm x 232mm x 260mm
- Weight: 28 kg
Key Features
- 30kW power rating for heavy-duty applications
- Supports 400V/480V three-phase input
- IP21 protection for indoor environments
- Advanced motor control and energy efficiency
- Integrated display and user-friendly interface
- Multiple communication options for system integration
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with variable speed drives and industrial motor control systems.
Applications
- Industrial automation
- Pumps and fans
- HVAC systems
- Conveyor systems
- Manufacturing machinery
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves energy efficiency by optimizing motor speed
- Reduces overall power consumption and operational costs
- Minimizes mechanical wear, extending equipment lifespan
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
The Clipsal VSD IP21 30KW 400V/480V (SCHATV630D30N4) is available for immediate purchase. Ideal for industrial automation, pumps, fans, and manufacturing applications.
