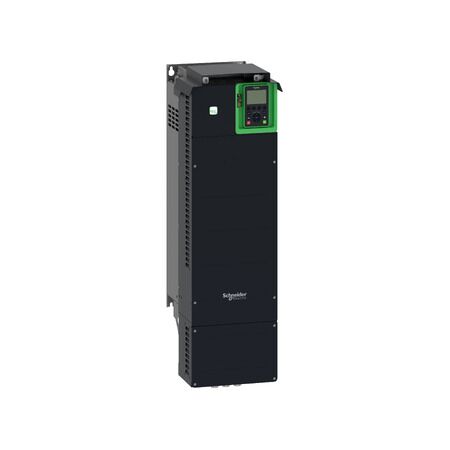

Variable Speed Drive 30kW IP21 Protection LCD Display Clipsal
The Variable Speed Drive 30kW is designed for heavy-duty applications, featuring IP21 protection for indoor use and an intuitive LCD display for easy operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Speed Drive 30kW | IP21 Protection | LCD Display | by Clipsal
Brand: Clipsal
SKU: SCHATV630D30M3
Alternatively Known As: Variable Speed Drive 30kW, VSD 30kW 240V, Clipsal SCHATV630D30M3, Schneider ATV630D30M3, 30kW Frequency Inverter
Technical Specifications
- Power rating: 30kW (40HP)
- Input voltage: 200-240V three-phase
- Output voltage: 0-240V three-phase
- Output frequency: 0.1-500Hz
- IP21 enclosure for indoor use
- Integrated EMC filter
- Control method: Sensorless vector control, V/F control
- Communication: Modbus, CANopen
- Display: LCD keypad
- Operating temperature: -15°C to +50°C
- Dimensions (H x L x W): 420mm x 232mm x 260mm
- Weight: 18 kg
Key Features
- 30kW power rating for heavy-duty applications
- Input voltage: 200V/240V three-phase
- IP21 protection for indoor environments
- Integrated EMC filter
- Advanced motor control algorithms
- User-friendly interface with LCD display
- Multiple communication options (Modbus, CANopen)
- Energy-saving features
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with variable speed drives and in accordance with local electrical regulations.
Applications
- Industrial automation
- Pumps and fans
- HVAC systems
- Conveyors
- Material handling equipment
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces energy consumption by optimizing motor speed
- Minimizes mechanical wear, extending equipment lifespan
- Supports efficient process control, lowering carbon footprint
Warranty Information
Standard 2-year manufacturer warranty.
Available Now
The Clipsal VSD IP21 30kW 200V/240V (SCHATV630D30M3) is available for immediate purchase. Ideal for industrial automation, pumps, fans, and HVAC applications.
