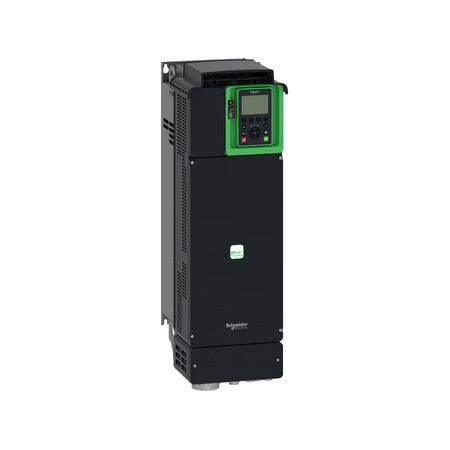

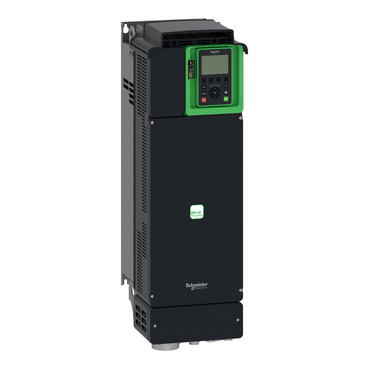

Variable Speed Drive 37kW IP21 Protection Integrated EMC Filter Clipsal
The Variable Speed Drive 37kW is designed for heavy-duty industrial applications, featuring IP21 protection for indoor use and an integrated EMC filter to minimize
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Speed Drive 37kW | IP21 Protection | Integrated EMC Filter | LCD Keypad | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV630D37N4
Alternatively Known As: Variable Speed Drive 37kW, VSD 37kW 400V, Clipsal ATV630D37N4, Schneider ATV630D37N4, 37kW Frequency Inverter, 37kW AC Drive
Technical Specifications
- Power Rating: 37kW (50HP)
- Input Voltage: 380-480V AC, 3-phase
- Output Voltage: 0-480V AC, 3-phase
- Input Frequency: 50/60Hz
- Output Frequency: 0.1-500Hz
- IP21 protection rating (indoor use)
- Integrated EMC filter
- Control Method: Sensorless vector control, V/F control
- Display: LCD keypad
- Communication: Modbus, Ethernet (optional cards)
- Operating Temperature: -15°C to +50°C
- Overload Capacity: 150% for 60 seconds
- Dimensions (H x L x W): 600mm x 310mm x 260mm
- Weight: 38 kg
Key Features
- 37kW (50HP) power rating for heavy-duty applications
- Supports 400V/480V three-phase input
- IP21 protection for indoor use
- Integrated EMC filter for reduced electrical noise
- Advanced motor control algorithms for energy efficiency
- User-friendly interface with LCD display
- Multiple communication options including Modbus and Ethernet
- Comprehensive protection features: overload, short-circuit, overvoltage, undervoltage
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with variable speed drives and industrial motor control systems. Ensure compliance with local wiring rules and safety standards.
Applications
- Industrial motor control
- Pumps and fans
- HVAC systems
- Conveyors
- Manufacturing automation
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Optimizes motor energy consumption, reducing overall power usage
- Minimizes mechanical wear, extending equipment lifespan
- Reduces CO2 emissions through efficient motor control
Warranty Information
Standard 2-year manufacturer warranty covering defects in materials and workmanship.
Available Now
The Clipsal VSD IP21 37KW 400V/480V (SCHATV630D37N4) is available for immediate purchase. Ideal for industrial motor control, pumps, fans, and automation applications.
