Variable Speed Drive 400V | 770A 400kW | IP20 Frame 8 by NHP

BRAND: NHP
SKU: 20G1ABC770JN0NNNNN
$145,640.00 List price: $193,390.00
Free pick up (over 25 kg)
For delivery quote message
Variable speed drive with 400V input and 770A output—ideal for industrial and commercial applications. Built for enhanced efficiency, with PID control and safety function suitability.

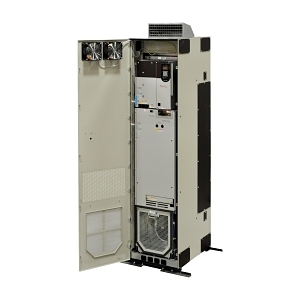

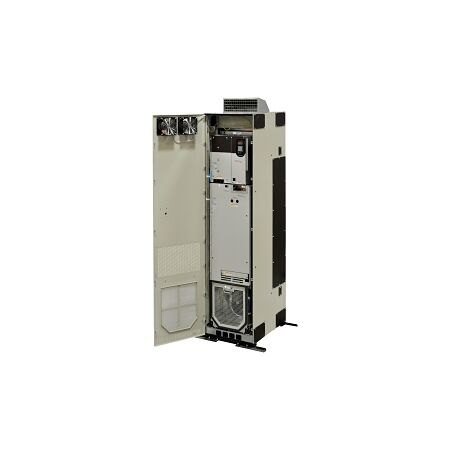

Product Name/Title: Allen-Bradley PowerFlex 755 VSD 400V IP20 ND 770A 400kW or HD 642A 355kW No Brake Frame 8

Brand: NHP

SKU: 20G1ABC770JN0NNNNN

Alternatively Known As: PowerFlex 755 VSD, Variable Speed Drive, Allen-Bradley VSD

Technical Specifications
  • Number of phases input: 3
  • Nominal input voltage: 400 V
  • Nominal output power AC: 400 kW
  • Nominal output current I2_n: 770 A
  • KW rating normal duty: 400 kW
  • KW rating heavy duty: 355 kW
  • Dynamic braking transistor: No
  • Control characteristic: PID
  • EMC version: Yes
  • Integrated motion function: No
  • Suitable for safety functions: Yes
  • Contains keypad: No
  • Frame size: 8
  • Degree of protection IP: IP20
  • Operating temperature: -20-60 °C
  • Storage temperature: -40-70 °C
  • Dimensions (H x L x W): 600mm x 400mm x 300mm
  • Weight: 50 kg
Key Features
  • Variable speed control for enhanced efficiency.
  • PID control characteristic for precise operation.
  • Suitable for safety functions.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial: Manufacturing, processing plants, and automation systems
  • Commercial: HVAC systems, pumps, and fans
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • Energy-efficient operation reduces overall energy consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley PowerFlex 755 VSD is available now for immediate purchase. Ideal for industrial and commercial applications requiring variable speed control.

Non-Returnable & Non-Cancellable

20G1ABC770JN0NNNNN-AU-PF755-Variable-Speed-Drive-Datasheet.pdf (20G1ABC770JN0NNNNN-AU-PF755-Variable-Speed-Drive-Datasheet.pdf, 1,390 Kb) [Download]
