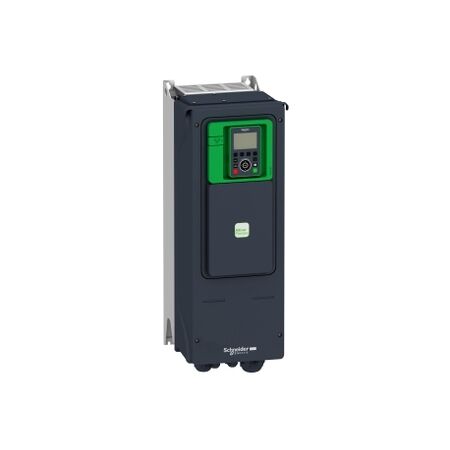

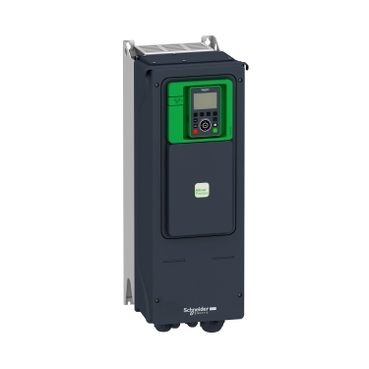

Variable Speed Drive ATV930 IP21 22kW 380-480V Input Motor Control Clipsal
The Variable Speed Drive ATV930 IP21 22kW is designed for heavy-duty applications, featuring a 380-480V input voltage range and advanced motor control for both
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Speed Drive ATV930 IP21 22kW | 380-480V Input | Advanced Motor Control | by Clipsal
Brand: Clipsal
SKU: SCHATV930D22N4
Alternatively Known As: ATV930D22N4, Altivar Process Drive 22kW, Schneider Electric Variable Speed Drive 22kW, ATV930 22kW VSD, 400V VSD, 480V VSD
Technical Specifications
- Power rating: 22kW (30HP)
- Input voltage: 380-480V AC, 3-phase
- Output voltage: 0-480V AC
- Frequency range: 0.1-599Hz
- Overload capacity: 150% for 60 seconds
- Control type: Vector control, sensorless and with encoder
- Integrated EMC filter: Category C3
- Protection degree: IP21
- Operating temperature: -15°C to +50°C (derating above 40°C)
- Communication protocols: Modbus, Ethernet, CANopen, Profibus (optional cards)
- Integrated safety: STO (Safe Torque Off), SLS (Safe Limited Speed)
- Display: Graphical keypad with navigation wheel
- Dimensions (H x L x W): 520mm x 232mm x 220mm
- Weight: 38 kg
Key Features
- 22kW (30HP) power rating for heavy-duty applications
- Input voltage range: 380-480V three-phase
- IP21 protection for indoor use
- Advanced motor control for asynchronous and synchronous motors
- Integrated safety functions (STO, SLS, etc.)
- Energy saving and process optimization features
- Built-in EMC filter
- User-friendly interface with graphical display
- Flexible communication options (Ethernet, Modbus, CANopen, Profibus, etc.)
- Robust design for harsh industrial environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with variable speed drives and in accordance with local electrical regulations and AS/NZS 3000 wiring rules.
Applications
- Industrial automation
- Pumps and fans
- Conveyors
- Material handling
- HVAC systems
- Water and wastewater treatment
- General motor control in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Optimizes energy consumption by matching motor speed to process requirements
- Reduces CO2 emissions through efficient motor control
- Supports integration with energy management systems
- Minimizes mechanical wear, extending equipment lifespan
Warranty Information
Standard 18-month warranty from date of invoice or 24 months from date of manufacture, whichever comes first.
Available Now
The Schneider Electric ATV930 IP21 22KW 400/480V Variable Speed Drive (SCHATV930D22N4) is available for immediate purchase. Ideal for industrial automation, process control, and energy-efficient motor management.
