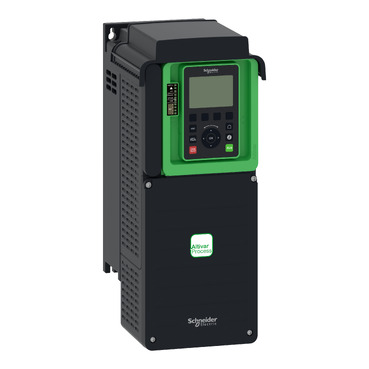

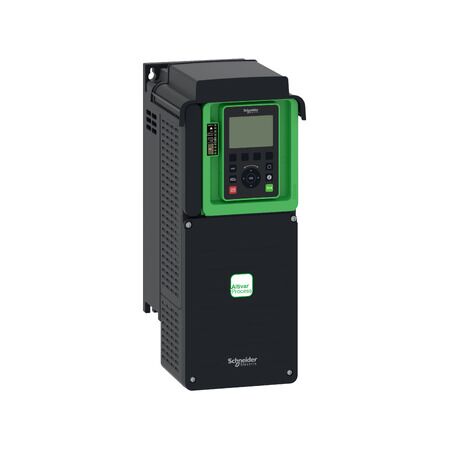

Variable Speed Drive IP21 11kW 400V 480V Input Motor Control Clipsal
The Variable Speed Drive IP21 11kW is designed for heavy-duty applications, supporting 400V 480V input with advanced motor control for energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Speed Drive IP21 11kW | 400V/480V Input | Advanced Motor Control | Integrated Display | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV630D11N4
Alternatively Known As: Variable Frequency Drive, VSD, VFD, Inverter Drive, Motor Speed Controller, Clipsal ATV630D11N4
Technical Specifications
- Power Rating: 11kW (15HP)
- Input Voltage: 3-phase 380-480V AC
- Output Voltage: 3-phase 0-480V AC
- Frequency Range: 0.1 to 500Hz
- Enclosure: IP21 (indoor use)
- Control Method: Sensorless vector control, V/F control
- Integrated display and keypad
- Communication: Modbus, Ethernet (optional)
- Operating Temperature: -15°C to +50°C
- Overload Capacity: 150% for 60 seconds
- Dimensions (H x L x W): 420mm x 232mm x 220mm
- Weight: 12 kg
Key Features
- 11kW power rating for heavy-duty applications
- Supports 3-phase 400V/480V input
- IP21 protection for indoor use
- Advanced motor control for energy efficiency
- Integrated display and keypad for easy configuration
- Multiple communication options for system integration
- Overload and short-circuit protection
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with variable speed drives and industrial motor control systems.
Applications
- Industrial automation
- Pumps and fans
- HVAC systems
- Conveyors
- Material handling equipment
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces energy consumption by optimizing motor speed
- Minimizes mechanical wear, extending equipment lifespan
- Supports efficient process control, lowering overall carbon footprint
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
The Clipsal Variable Speed Drive IP21 11kW 400V/480V (SCHATV630D11N4) is available for immediate purchase. Ideal for industrial automation, pumps, fans, and HVAC applications.
