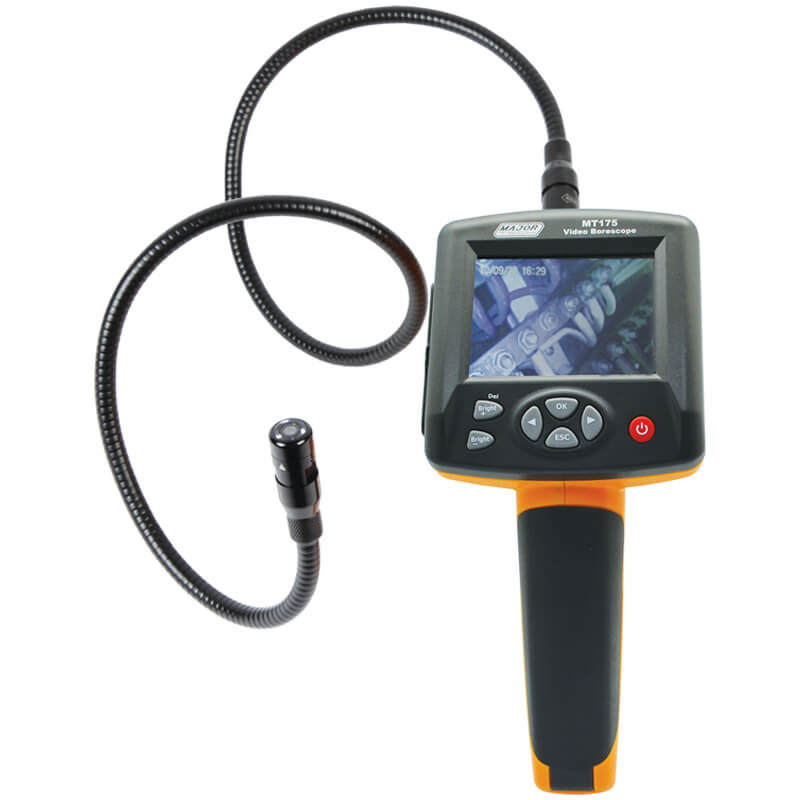

Video Borescope MajorTech
MajorTech video borescope features a flexible camera probe and video display. Ideal for inspection of cavities, conduit and voids.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Digital Inspection Camera, Video Inspection Borescope, Flexible Camera Borescope
Technical Specifications
- Display: 3.2-inch colour TFT LCD
- Display Resolution: 320 x 240 pixels
- Camera Sensor: 1/4-inch CMOS, 640 x 480 pixels
- Photo Resolution: 640 x 480 pixels
- Maximum Frame Rate: 30 FPS
- Viewing Angle: 68 degrees
- Focusing Distance: 5 to 15 cm
- Probe Length: 1 m flexible gooseneck; 2 m and 3 m options available
- Camera Diameter: 17 mm
- Video Formats: MPEG4, 3GP, AVI and ASF
- Photo Format: JPEG
- Connectivity: USB cable and PAL/NTSC TV-out
- Storage: SD card support and 8 GB flash memory
- Power Supply: Rechargeable battery with USB charging
- Probe Construction: Waterproof, shape-retaining flexible gooseneck
- Dimensions (H x L x W): 160mm x 240mm x 100mm
- Weight: 0.584 kg
Key Features
- Integrated colour LCD monitor for real-time viewing
- Flexible gooseneck probe retains its configured shape
- Waterproof camera probe for inspection in dark and moist areas
- On-site photo and video recording with time and date display
- Image rotation, deletion and data-logging functions
- Images and videos can be transferred to a computer via SD card or USB
- Suitable for inspecting cavities, conduit, voids and other hard-to-reach areas
- Compatible with automotive, HVAC, cable-routing, marine and aircraft inspection applications
Applications
- HVAC and refrigeration equipment inspection
- Automotive inspection and fault finding
- Inspection of cavities, conduits and building voids
- Cable routing and service-path inspection
- Boat and aircraft maintenance inspection
- Internal inspection of machinery and components
Standards & Compliance
- AS 61010.1: Safety requirements for electrical equipment for measurement, control and laboratory use — general requirements; applicability and product compliance should be confirmed from the supplied compliance documentation
Environmental Benefits
- Rechargeable battery reduces reliance on disposable batteries and associated waste
- Durable waterproof probe construction may extend service life and reduce replacement frequency
- Digital photo and video recording reduces the need for printed inspection records
Warranty Information
Major Tech warrants its test instruments against defects in materials and workmanship for two years from the date of shipment, subject to product registration and warranty conditions.
Available Now
Available through Major Tech and authorised Australian distributors.
