VLR-263RA2111 | Reflectors and optics

BRAND: SICK
SKU: 2118263
$7,304.50 List price: $9,181.00
+ −
30 Days Return Delivery Options

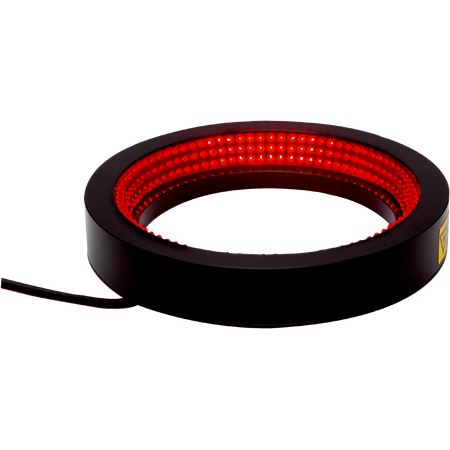

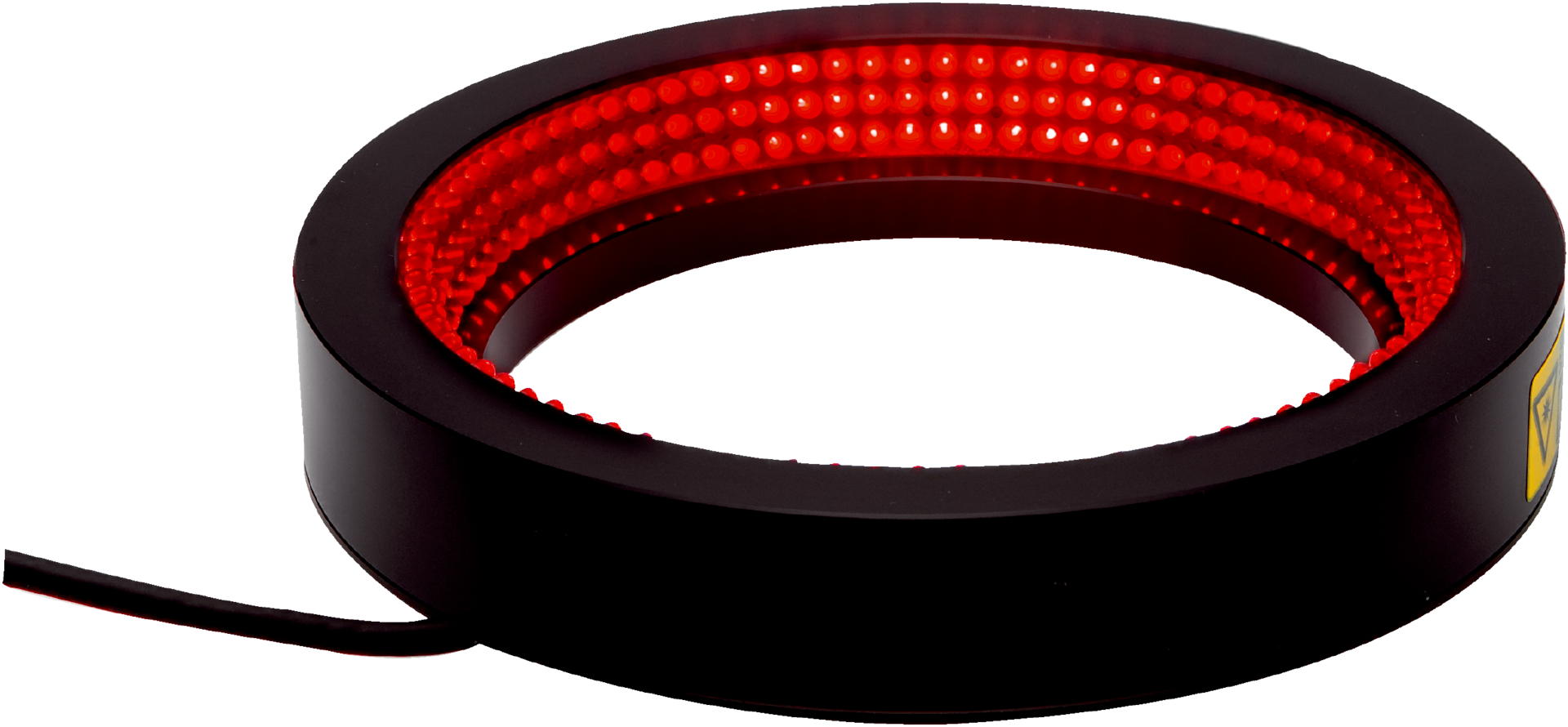

The SICK VLR-263RA2111 is a LED ring illumination unit designed for industrial and machine vision applications, featuring a shallow illumination angle and red LED light source for precise and efficient illumination.

Product Name/Title: VLR-263RA2111 | Reflectors and optics

Brand: SICK

SKU: 2118263

Alternatively Known As: LED ring light, ring illumination unit, machine vision light, optical illuminator

Technical Specifications
  • Light source: LED, red, 630 nm
  • LED class: Risk group 1 (low risk, IEC62471:2008)
  • Supply voltage: 24 V DC
  • Power consumption: 0.86 A
  • Connections: Connector M12, 4-pin, cable length 0.5 m
  • Ambient operating temperature: 0°C to +40°C
  • Storage temperature: -20°C to +60°C
  • Dimensions (H x L x W): 20mm x 60mm x 60mm
  • Weight: 0.2 kg
Key Features
  • Ring illumination unit with shallow illumination angle
  • Red LED light source at 630 nm wavelength
  • Low risk LED class (Risk group 1, IEC62471:2008)
  • Supply voltage of 24 V DC
  • Power consumption of 0.86 A
  • Connector M12, 4-pin with 0.5 m cable length
  • Operating temperature range 0°C to +40°C
  • Storage temperature range -20°C to +60°C
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
  • Industrial automation lighting
  • Machine vision systems
  • Optical inspection and illumination
Standards & Compliance
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Energy-efficient LED technology reduces power consumption
  • Long LED lifespan minimizes waste and replacement frequency
Warranty Information

Standard manufacturer warranty applies, typically 1 year against defects.

Available Now

The SICK VLR-263RA2111 LED Ring Illumination Unit is available for immediate purchase, ideal for industrial and machine vision lighting applications.
