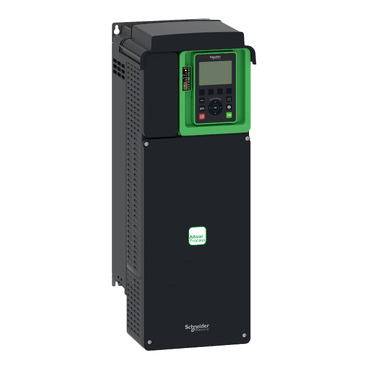

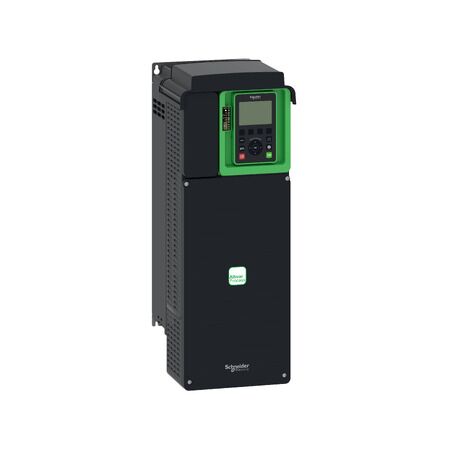

VSD IP21 22KW Variable Speed Drive 400V 480V Input Integrated EMC Filter Clipsal

BRAND: Clipsal
SKU: SCHATV630D22N4
$6,109.90 List price: $7,613.80
+ −
30 Days Return Electricians Unlock Trade Access
The VSD IP21 22KW Variable Speed Drive is designed for heavy-duty industrial applications, supporting 400V 480V input with an IP21 protection rating for indoor use.

Product Name/Title: VSD IP21 22KW Variable Speed Drive | 400V/480V Input | Integrated EMC Filter | LCD Keypad | @Each of 1 | by Clipsal

Brand: Clipsal

SKU: SCHATV630D22N4

Alternatively Known As: Variable Speed Drive 22kW, VSD 22kW 400V, Clipsal ATV630D22N4, Schneider ATV630D22N4, 22kW Frequency Inverter, Industrial VSD 22kW

Technical Specifications
  • Power Rating: 22kW (30HP)
  • Input Voltage: 3-phase 380-480V AC, 50/60Hz
  • Output Voltage: 3-phase 0-480V AC
  • Output Frequency: 0.1-500Hz
  • IP21 protection rating (indoor use)
  • Integrated EMC filter (C3 category)
  • Control Method: Sensorless vector, V/F, and flux vector control
  • Display: LCD keypad
  • Communication: Modbus, CANopen (optional expansion for others)
  • Operating Temperature: -15°C to +50°C (derating above 40°C)
  • Overload Capacity: 150% for 60 seconds
  • Dimensions (H x L x W): 520mm x 232mm x 220mm
  • Weight: 18 kg
Key Features
  • 22kW power rating for heavy-duty industrial applications
  • Supports 3-phase 400V/480V input
  • IP21 protection for indoor environments
  • Integrated EMC filter for reduced electrical noise
  • Advanced motor control algorithms for energy efficiency
  • User-friendly interface with LCD display
  • Multiple communication options including Modbus
  • Comprehensive protection features: overload, short-circuit, overvoltage
Professional Installation Requirements
  • Installation must be performed by a licensed electrician experienced with variable speed drives and in accordance with local electrical regulations and AS/NZS 3000 wiring rules.
Applications
  • Industrial motor control
  • Pumps and fans
  • HVAC systems
  • Conveyors
  • Manufacturing automation
Standards & Compliance
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Improves energy efficiency by optimizing motor speed
  • Reduces greenhouse gas emissions through lower power consumption
  • Minimizes mechanical wear, extending equipment lifespan
Warranty Information

Standard 2-year manufacturer warranty covering defects in materials and workmanship.

Available Now

Available for immediate purchase. Ideal for industrial motor control applications requiring reliable and efficient variable speed operation.
