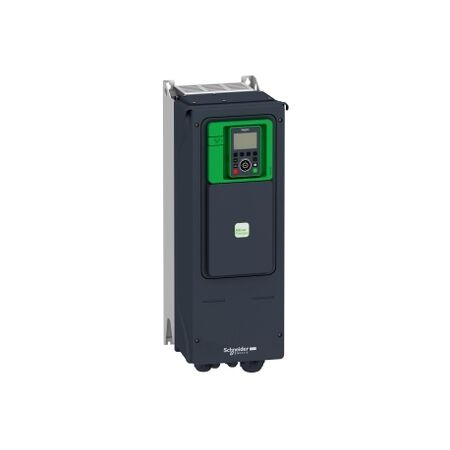

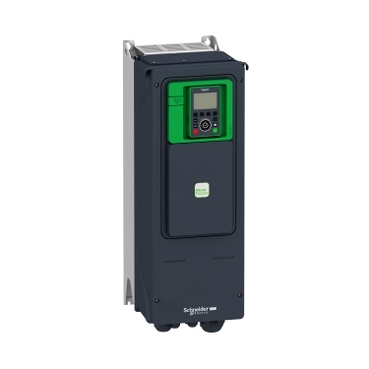

VSD IP55 11KW Variable Speed Drive 400V 480V Input Integrated EMC Filter Clipsal
The VSD IP55 11KW Variable Speed Drive is engineered for industrial motor control, offering robust performance with a 400V 480V input and an IP55 enclosure for dust
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: VSD IP55 11KW Variable Speed Drive | 400V/480V Input | Integrated EMC Filter | LCD Keypad | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV650D11N4
Alternatively Known As: Variable Speed Drive 11kW, VSD 11kW IP55, Clipsal ATV650D11N4, Schneider ATV650D11N4, 11kW Frequency Inverter, Industrial VSD 11kW
Technical Specifications
- Power Rating: 11kW (15HP)
- Input Voltage: 3-phase 380-480V AC
- Output Voltage: 3-phase 0-480V AC
- Enclosure: IP55 (dust and water protected)
- Frequency Range: 0.1 to 500Hz
- Integrated EMC filter
- Control Method: Vector control, V/F control
- Display: LCD keypad
- Communication: Modbus, CANopen
- Operating Temperature: -10°C to +50°C
- Overload Capacity: 150% for 60 seconds
- Dimensions (H x L x W): 420mm x 230mm x 220mm
- Weight: 18 kg
Key Features
- IP55 rated enclosure for dust and water protection
- 11kW power output suitable for heavy-duty applications
- Supports 400V/480V three-phase input
- Integrated EMC filter for reduced electrical noise
- Advanced motor control algorithms for energy efficiency
- User-friendly interface with LCD display
- Multiple communication options including Modbus and CANopen
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with industrial motor drives, following AS/NZS 3000 wiring rules and manufacturer guidelines.
Applications
- Industrial motor control
- Pumps and fans
- HVAC systems
- Conveyor systems
- Manufacturing automation
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by optimizing motor speed
- Minimizes mechanical wear, extending equipment lifespan
- Supports efficient process control, lowering operational emissions
Warranty Information
Standard 2-year manufacturer warranty.
Available Now
The Clipsal VSD IP55 11KW 400V/480V (SCHATV650D11N4) is available for immediate purchase. Ideal for industrial motor control applications requiring robust performance and environmental protection.
