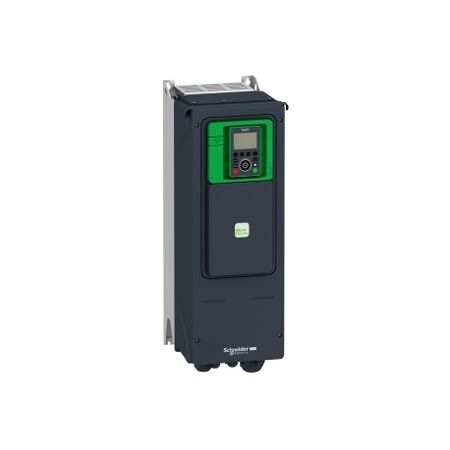

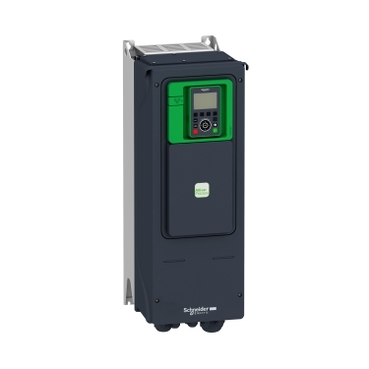

VSD IP55 18KW Variable Speed Drive 400V 480V Input Motor Control Clipsal
The VSD IP55 18KW Variable Speed Drive is engineered for industrial motor control, offering robust performance with a 400V 480V three-phase input.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: VSD IP55 18KW Variable Speed Drive | 400V/480V Input | Advanced Motor Control | by Clipsal
Brand: Clipsal
SKU: SCHATV650D18N4
Alternatively Known As: Variable Speed Drive 18kW, VSD 18kW 400V, Clipsal ATV650, Schneider ATV650D18N4, Industrial VSD IP55, 18kW Frequency Inverter
Technical Specifications
- Power Rating: 18kW
- Input Voltage: 400V/480V three-phase
- Enclosure Rating: IP55 (dust and water protected)
- Output Frequency: 0.1 to 500 Hz
- Integrated EMC filter
- Control Method: Vector control, V/F control
- Display: LCD keypad
- Communication: Modbus, Ethernet (optional)
- Operating Temperature: -10°C to +50°C
- Overload Capacity: 150% for 60 seconds
- Dimensions (H x L x W): 520mm x 232mm x 260mm
- Weight: 28 kg
Key Features
- IP55 rated enclosure for dust and water protection
- 18kW power output suitable for heavy-duty applications
- Supports 400V/480V three-phase input
- Advanced motor control and energy efficiency
- Integrated EMC filter for reduced electrical noise
- User-friendly interface with LCD display
- Multiple communication options for integration
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with industrial motor control systems to ensure compliance with Australian standards and optimal performance.
Applications
- Industrial motor control
- Pumps and fans
- HVAC systems
- Conveyor systems
- Manufacturing automation
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by optimizing motor speed
- Minimizes mechanical wear and extends equipment lifespan
- Supports efficient process control, lowering overall carbon footprint
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
The Clipsal VSD IP55 18KW 400V/480V (SCHATV650D18N4) is available for immediate purchase. Ideal for industrial motor control applications requiring robust performance and environmental protection.
