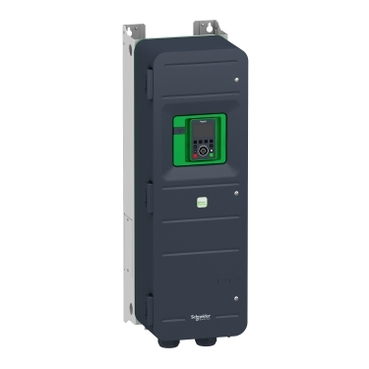

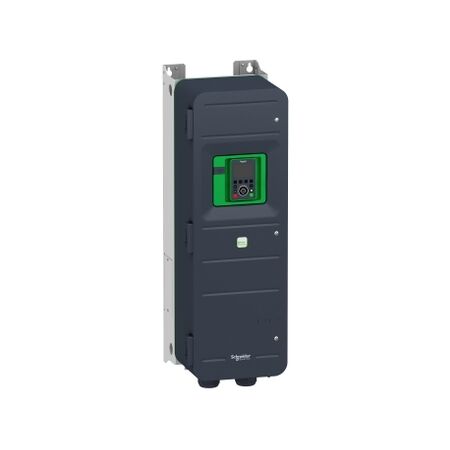

VSD IP55 30KW 400V 480V Motor Control Integrated EMC Filter Clipsal
The VSD IP55 30KW 400V 480V is a powerful variable speed drive designed for industrial motor control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: VSD IP55 30KW 400V/480V | Advanced Motor Control | Integrated EMC Filter | User-Friendly Digital Display | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV650D30N4
Alternatively Known As: Variable Speed Drive 30kW, VSD 30kW IP55, Clipsal VSD 30kW, Schneider ATV650D30N4, 30kW Frequency Inverter, Industrial VSD 400V/480V
Technical Specifications
- Power Rating: 30kW (40HP)
- Input Voltage: 400V/480V three-phase
- Enclosure: IP55 (dust and water protected)
- Output Frequency: 0.1 to 500 Hz
- Integrated EMC filter
- Control Method: Sensorless vector control, V/F control
- Display: Digital keypad
- Protection: Overload, short-circuit, overvoltage, undervoltage, phase loss
- Operating Temperature: -10°C to +50°C
- Dimensions (H x L x W): 700mm x 350mm x 300mm
- Weight: 45 kg
Key Features
- 30kW power rating for heavy-duty applications
- IP55 enclosure for dust and water protection
- Supports 400V/480V three-phase input
- Advanced motor control and energy efficiency
- Integrated EMC filter for reduced electrical noise
- User-friendly interface with digital display
- Multiple protection features: overload, short-circuit, overvoltage
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with industrial motor control systems and in accordance with AS/NZS 3000 wiring rules.
Applications
- Industrial motor control
- Pumps and fans
- HVAC systems
- Conveyor systems
- Manufacturing automation
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves energy efficiency by optimizing motor speed
- Reduces greenhouse gas emissions through lower energy consumption
- Minimizes mechanical wear, extending equipment lifespan
Warranty Information
Standard 2-year manufacturer warranty covering defects in materials and workmanship.
Available Now
The Clipsal VSD IP55 30KW 400V/480V (SCHATV650D30N4) is available for immediate purchase. Ideal for industrial motor control, pumps, fans, and automation applications.
