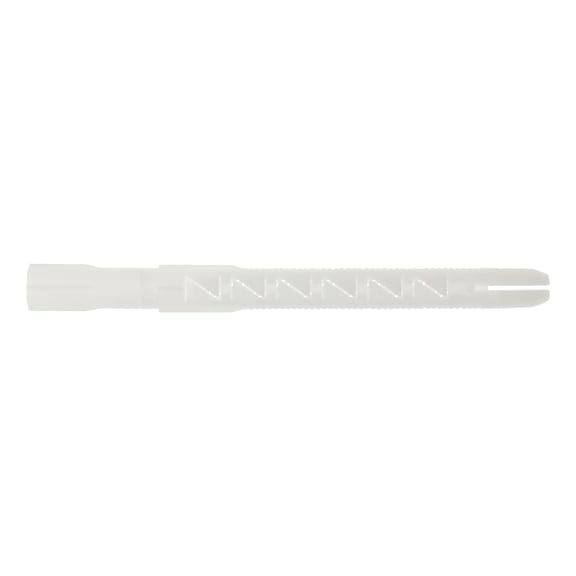

W RD Plastic Frame Anchor | 8mm Diameter | Expansion in Four Directions | by Wurth
The W RD Plastic Frame Anchor is designed for reliable fastening in concrete and brick, featuring an 8mm diameter and 80mm length. With expansion in four directions, it ensures excellent load distribution and stability, making it ideal for both indoor and outdoor applications. Made from high-quality, halogen-free polyamide, this anchor is thermally stable from -40°C to +80°C, providing durability and safety for your construction needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: W RD Plastic Frame Anchor | 8mm Diameter | Expansion in Four Directions | by Wurth
Brand: Wurth
SKU: 912808003
Alternatively Known As: Plastic wall anchor, Frame fixing anchor, Nylon anchor, Expansion anchor without collar
Technical Specifications
- Anchor diameter: 8 mm
- Anchor length: 80 mm
- Max. attachment height: 10 mm
- Nominal drill-bit diameter: 8 mm
- Through-hole diameter: 8.5 mm
- Screw diameter: 6 mm
- Drill hole depth (h0): 60 mm
- Drill hole depth (h1): 80 mm
- Type description: W-RD 8, without collar
- Dimensions (H x L x W): 80mm x 8mm x 8mm
- Weight: 0.05 kg
Key Features
- Expansion in four directions for excellent load distribution
- Anti-rotation lock prevents anchor sleeve spinning during installation
- Hammer-in stop prevents premature expansion during installation
- Immediate load-bearing capacity saves installation time
- Made from high-quality polyamide, halogen and silicone free
- Thermally stable from -40°C to +80°C
- Natural colour without additional dyes or coatings
- Flexible application with in-place installation
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure correct drill hole size, depth, and proper anchor setting for maximum load capacity and safety.
Applications
- Suitable for use in concrete, solid brick, and hollow brick materials
- Ideal for indoor and outdoor applications including wet rooms when used with stainless steel screws
- Used for fastening fixtures where high load-bearing capacity and stability are required
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from halogen and silicone free materials reducing harmful chemical impact
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Wurth provides a standard warranty against manufacturing defects; please refer to Wurth's official warranty policy for details.
Available Now
The Wurth W RD Plastic Frame Anchor without collar 8x80mm in natural colour is available for immediate purchase, ideal for construction and building fastening applications.
