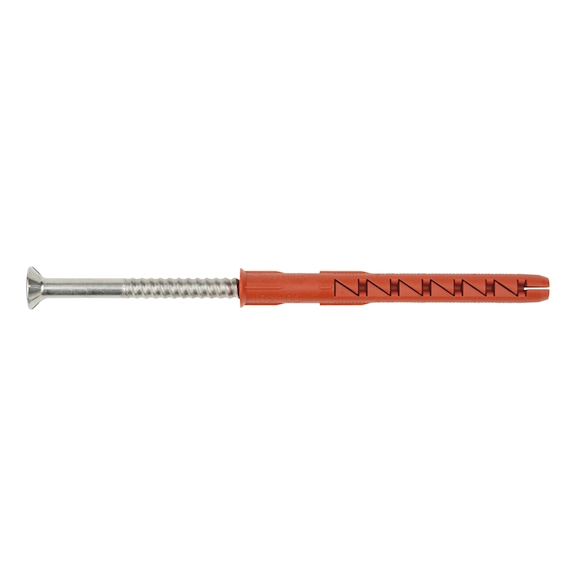

W-UR 10 SymCon Plastic Frame Fixing | A4 Stainless Steel Screw | 50 PCS | by Wurth
W-UR 10 SymCon Plastic Frame Fixing is designed for secure fastening in masonry and concrete applications. Featuring an A4 stainless steel screw with a countersunk head, this fixing ensures immediate load-bearing capacity and is ideal for professionals seeking reliable installation. With low installation torque and innovative anchor geometry, it minimizes the risk of spinning and provides earthquake-proof anchoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: W-UR 10 SymCon Plastic Frame Fixing | A4 Stainless Steel Screw | 50 PCS | by Wurth
Brand: Wurth
SKU: 5911010103
Alternatively Known As: Plastic frame anchor, SymCon anchor, stainless steel countersunk screw fixing, masonry anchor, concrete fixing screw
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 100 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter in component: 10.5 mm
- Attachment height: 60 mm
- Screw material: Stainless steel A4
- Internal drive: AW40
- Head type: Countersunk head
- Approval: ETA-11/0309
- Type description: W-UR 10 SymCon A4, countersunk head screw
- Temperature resistance: 50°C / 80°C
- Dimensions (H x L x W): 100mm x 10.5mm x 10mm
- Weight: 0.15 kg
Key Features
- Special anchor geometry for immediate load-bearing capacity
- ETA assessment for masonry, autoclaved aerated concrete, and concrete
- General type approval for individual fixing points in concrete
- Low installation torque prevents spinning of anchor sleeve
- Reliable follow-up expansion due to innovative anchor geometry
- Earthquake-proof anchoring tested and approved
- Pre-assembled anchor sleeve and special screw for minimal installation work
- No additional U-washer required, preventing contact corrosion
- Approved for redundant non-structural systems
- Multiple embedment depths for concrete and masonry
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure compliance with structural and safety standards.
Applications
- Masonry fastening
- Autoclaved aerated concrete fixing
- Concrete anchoring
- Non-load-bearing system installations
- Extreme weather condition fastening
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable stainless steel screw reduces need for frequent replacements
- Pre-assembled components minimize waste during installation
- Approved for secure installation reducing structural failures and waste
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The W-UR 10 SymCon plastic frame fixing with A4 stainless steel countersunk head screw is available for immediate purchase, ideal for secure fastening in masonry, concrete, and aerated concrete applications.
