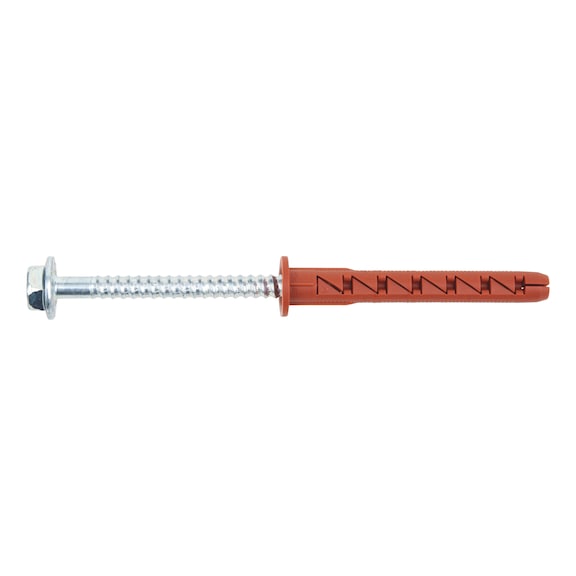

W-UR F 10 SymCon Plastic Frame Fixing | Zinc Plated Steel Hexagon Head Bolt | High Load Capacity | 40 PCS | by Wurth
W-UR F 10 SymCon Plastic Frame Fixing is designed for secure anchoring in masonry and concrete applications. Featuring a zinc plated steel hexagon head bolt, it offers immediate load-bearing capacity and reliable follow-up expansion. Ideal for construction professionals, this fixing ensures minimal installation work with pre-assembled components and a strong anti-rotation lock.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: W-UR F 10 SymCon Plastic Frame Fixing | Zinc Plated Steel Hexagon Head Bolt | High Load Capacity | 40 PCS | by Wurth
Brand: Wurth
SKU: 5911010204
Alternatively Known As: Plastic frame fixing bolt, SymCon anchor bolt, Hexagon head fixing bolt, Wurth anchor bolt, Zinc plated fixing bolt
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 115 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter in component: 10.5 mm
- Attachment height: 75 mm
- Material of screw: Steel
- Internal drive: AW40
- Surface of screw: Zinc plated
- Head type: Hexagon washer head
- Approval: ETA-11/0309
- Type description: W-UR F 10 SymCon, hexagonal bolt
- Temperature resistance: 50°C / 80°C
- Dimensions (H x L x W): 115mm x 115mm x 10mm
- Weight: 0.15 kg
Key Features
- Special anchor geometry for immediate load-bearing capacity
- ETA assessment for high loads in masonry, aerated concrete, and concrete
- Reliable follow-up expansion capability with teeth expanding in four directions
- Friction locking anchorage between anchor sleeve and base material
- Anchor sleeve made of high-quality polyamide with strong anti-rotation lock
- No additional U-washer required, preventing contact corrosion
- Pre-assembled anchor sleeve and special screw for minimal installation work
- Hammer-in stop prevents premature expansion during installation
- Multiple embedment depths for masonry and concrete applications
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper anchoring and load-bearing capacity according to ETA approval.
Applications
- Masonry anchoring
- Autoclaved aerated concrete fixing
- Concrete fixing for high load applications
- Secure anchoring in construction and building projects
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Pre-assembled components minimize installation waste
- Corrosion-resistant zinc plating extends product lifespan
Warranty Information
Warranty as per Wurth standard terms and conditions. Please refer to Wurth for detailed warranty information.
Available Now
The W-UR F 10 SymCon plastic frame fixing with zinc plated steel hexagon head bolt is available for immediate purchase. Ideal for secure anchoring in masonry, aerated concrete, and concrete construction applications.
