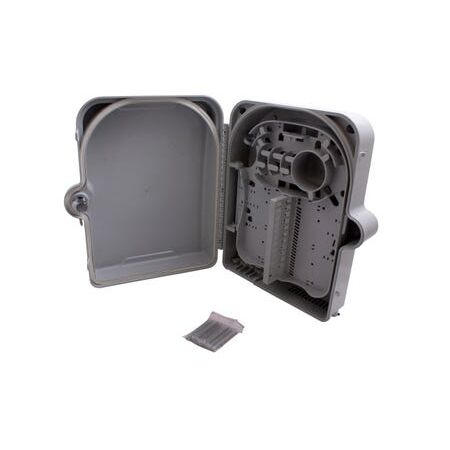

Wall Box for 24-Fibre SC Simplex | IP65 Rated | Lockable Design | Bend Radius Protection by Cabac
The Cabac Wall Box for 24-Fibre SC Simplex is an IP65 rated lockable distribution box designed for indoor and outdoor fibre optic cable termination, offering flexible adaptor options and robust protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wall Box for 24-Fibre SC Simplex IPRated
Brand: Cabac
SKU: WB-24-SCS-IP
Alternatively Known As: 24 Fibre SC Simplex Wall Box, Fibre Optic Distribution Box, IP65 Fibre Enclosure, Lockable Fibre Wall Box
Technical Specifications
- IP65 rated for external use
- Lockable door for security
- Houses 12-24 fibres
- Compatible with SC and LC adaptor types
- Integrated strength member tie positions
- Bend radius protection included
- Removable front door and splice tray for easy installation
- Accepts loose tube, tight buffered and pre-terminated cables
- Dimensions (H x L x W): 355mm x 100mm x 280mm
- Weight: 1.5 kg
Key Features
- IP65 rating for external use
- Lockable door for added security
- Integrated cable tie points for securing incoming cable
- Up to 24 splice & SC connection points
- Removable splice tray for easy installation
- Accepts loose tube, distribution and pre-terminated cables
- Integrated bend radius protection
- Removable door for ease of installation
- Supplied with 24 heatshrink splice protectors
- Supplied with transit tubing
- Supplied with wall fixings and tie wraps
- ROHS, REACH & SvHC compliant
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper fibre termination and compliance with telecommunications standards.
Applications
- Data centres, premise installations, telecommunication networks
- Ethernet, Fibre Channel, ATM, LAN, MAN and WAN
- Data communication and telecommunication networks
- Indoor/outdoor applications
Standards & Compliance
- AS/NZS 3084 – Telecommunications installations – Customer cabling
Environmental Benefits
- ROHS, REACH & SvHC compliant ensuring reduced hazardous substances
- Durable ABS enclosure extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Wall Box for 24-Fibre SC Simplex IP Rated is available now for immediate purchase. Ideal for telecommunication networks and data centre fibre management.
