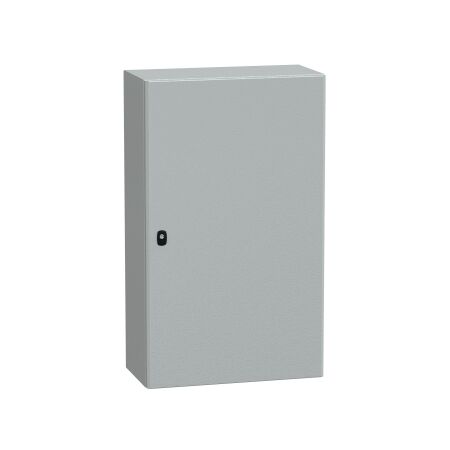

Wall Mounted Steel Enclosure | 1000x600x300mm | IP66 & IK10 Rated | Plain Door by Clipsal

BRAND: Clipsal
SKU: NSYS3D10630P
$643.50 List price: $965.20
Free pick up (over 25 kg)
For delivery quote message
Wall mounted steel enclosure with IP66 and IK10 ratings—ideal for industrial applications. Built for robust protection, with a plain door and 3-point lock for enhanced security.

Product Name/Title: Spacial S3D, Wall mounted steel enclosure, plain door, with mounting plate, 1000x600x300mm, IP66, IK10

Brand: Clipsal

SKU: NSYS3D10630P

Alternatively Known As: Wall Mounted Steel Enclosure, Industrial Enclosure, IP66 Enclosure

Technical Specifications
  • Material: Steel with epoxy-polyester powder finish.
  • Mounting plate: Galvanised steel.
  • Door type: Plain, reversible opening.
  • Lock type: 3 points lock, 3 mm double-bar.
  • NEMA degree of protection: NEMA 4X/13.
  • Standards: IEC 62208.
  • Dimensions (H x L x W): 1000mm x 300mm x 600mm
  • Weight: 41 kg
Key Features
  • IP66 rated for dust and water protection.
  • IK10 rated for impact resistance.
  • Plain door with a 3-point lock for security.
  • Wall-mounted design with a single piece body.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Industrial: Suitable for various industrial applications requiring robust protection.
Standards & Compliance
  • Complies with IEC 62208 for safety and performance standards.
Environmental Benefits
  • Green Premium product status.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Spacial S3D Wall Mounted Steel Enclosure is available now for immediate purchase. Ideal for industrial applications requiring robust protection.

NSYS3D10630P (NSYS3D10630P, 231 Kb) [Download]
