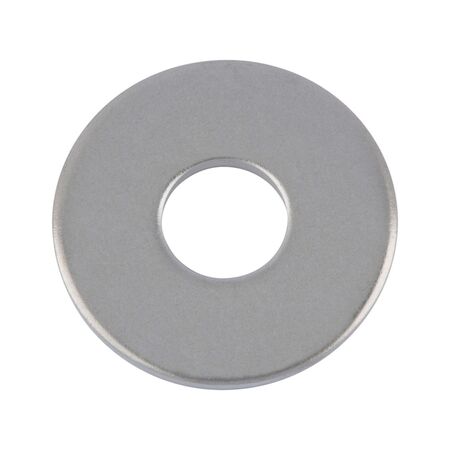

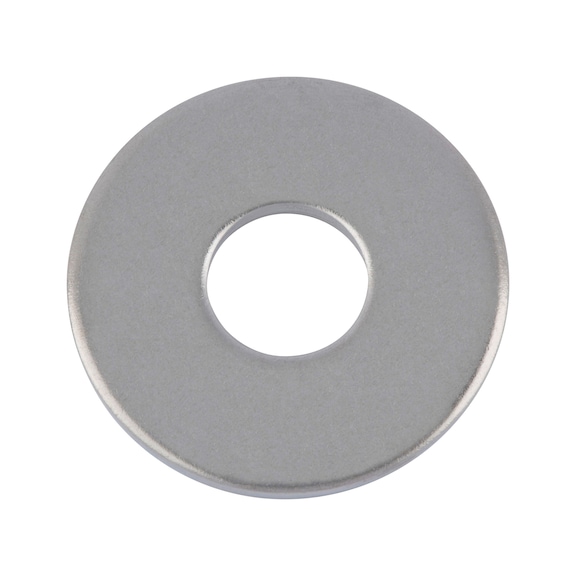

Washer DIN 9021 | Large Outside Diameter | A2 Stainless Steel | Plain Finish | @Pack of 100 | by Wurth
Washer DIN 9021 with a large outside diameter and A2 stainless steel construction is perfect for mechanical assemblies requiring secure fastening with M6 screw threads. Its plain surface finish ensures enhanced load distribution and corrosion resistance, making it ideal for industrial and construction applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Washer DIN 9021 | Large Outside Diameter | A2 Stainless Steel | Plain Finish | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 4196
Alternatively Known As: Large Diameter Washer, DIN 9021 Washer, Stainless Steel Flat Washer, M6 Washer
Technical Specifications
- Suitable for screw thread: M6

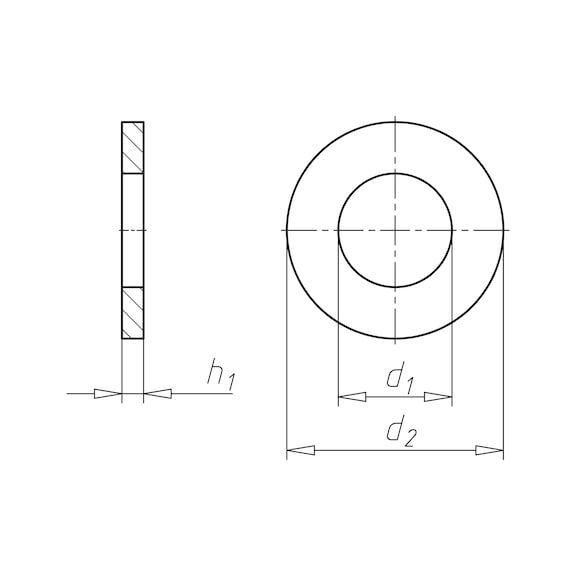

- Internal diameter (d1): 6.4 mm
- Outer diameter (d2): 18 mm
- Thickness (h1): 1.6 mm
- Material: Stainless steel A2
- Surface: Plain
- Vickers hardness: 140 HV
- Design: With large outside diameter
- Standards: DIN 9021
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.6mm x 18mm x 18mm
- Weight: 0.05 kg
Key Features
- Large outside diameter design for enhanced load distribution
- Made from A2 stainless steel for corrosion resistance
- Plain surface finish
- RoHS-compliant
Professional Installation Requirements
- No special professional installation required; suitable for standard mechanical assembly by trained personnel.
Applications
- Mechanical assemblies requiring secure fastening with M6 screw threads
- Industrial and construction applications needing corrosion-resistant washers
- General use in machinery, automotive, and equipment manufacturing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from durable stainless steel for long service life reducing replacement waste
- RoHS-compliant ensuring no hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for industrial, mechanical, and construction fastening applications.
