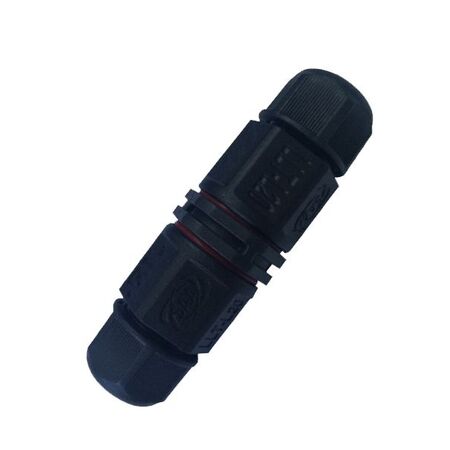

Waterproof Connector 2 Way Cable Extension | 380V 25A | IP68 Rated
Waterproof connector with 380V voltage and 25A current rating—ideal for outdoor electrical connections. Built for durability, with IP68 rating and silicone gel gasket for superior water resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Waterproof Connector 2 Way Cable Extension | 380V 25A | IP68 Rated
SKU: CONN001
Alternatively Known As: Waterproof Cable Connector, IP68 Cable Extension Connector, 2 Way Waterproof Electrical Connector, Outdoor Cable Connector
Technical Specifications
- Voltage rating: 380V AC
- Current rating: 25A
- Contact resistance: 100 Mohm at 500V
- Breakdown voltage: 1500V for 1 minute at 5mA
- Maximum copper cabling size: 4mm braided wire
- Screw terminal material: Brass with nickel plating
- Operating temperature range: -40 to 105°C
- Gasket: Silicone gel
- Housing material: Nylon glass fiber reinforced (PA66 + GF V0)
- Circular cable diameter compatibility: 6.5mm to 10.0mm
- IP rating: IP68
- Note: Flat sheathed cable ends require sealing with waterproof compound
- Dimensions (H x L x W): 30mm x 80mm x 50mm
- Weight: 0.1 kg
Key Features
- Voltage rating of 380V AC
- Current rating of 25A
- IP68 rated for waterproof and dustproof protection
- High temperature resistance from -40 to 105°C
- Silicone gel gasket for enhanced sealing
- Nylon glass fiber reinforced housing (PA66 + GF V0)
- Screw terminals made of brass with nickel plating
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper sealing and electrical safety.
Applications
- Outdoor electrical connections requiring waterproof protection
- Industrial and commercial cable extensions
- Marine and automotive electrical systems
- Any environment exposed to moisture or dust requiring secure cable connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable waterproof design reduces need for frequent replacements, minimizing waste.
- High temperature resistance ensures long service life in harsh environments.
Warranty Information
12 month replacement warranty.
Available Now
The Waterproof Connector 2 Way Cable Extension 380V 25A IP68 Rated is available now for immediate purchase. Ideal for outdoor, industrial, and marine electrical applications requiring reliable waterproof connections.
