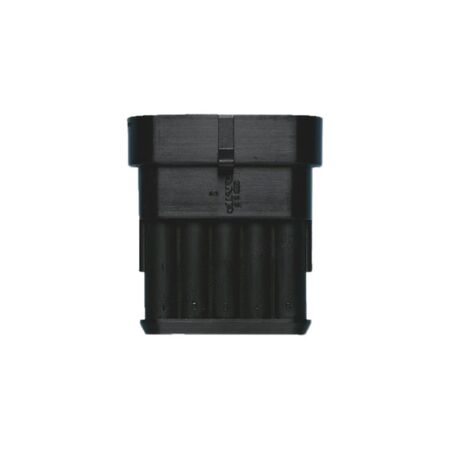

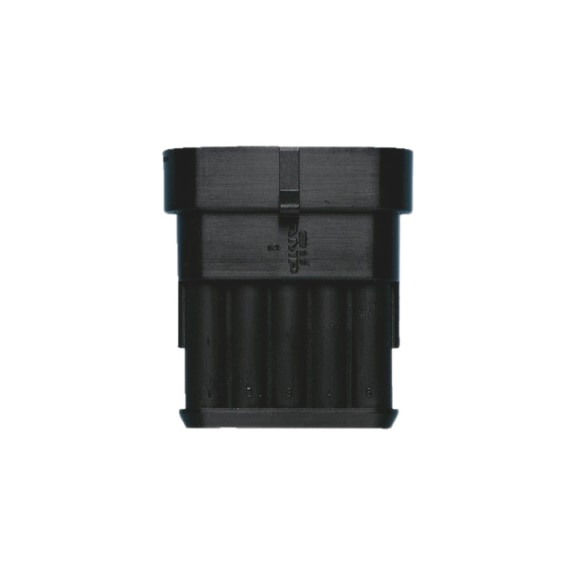

Waterproof Pin Housing TE Superseal 15 Series | IP67 Rated | 5 Poles | Durable PA 6.6 Material | by Wurth
The Waterproof Pin Housing TE Superseal 15 Series is designed for reliable electrical connections in automotive and industrial applications. With an IP67 rating for dust and waterproof protection, it accommodates wire cross sections from 0.35 to 2.5 mm² and supports a maximum voltage of 24 V/DC and current of 14 A. Built from durable PA 6.6 material, this connector ensures longevity and safety in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Waterproof Pin Housing TE Superseal 15 Series | IP67 Rated | 5 Poles | Durable PA 6.6 Material | by Wurth
Brand: Wurth
SKU: 5551025
Alternatively Known As: Waterproof electrical connector housing, TE Superseal 15 pin connector, IP67 pin housing, Wurth 5 pin connector
Technical Specifications
- Number of electrical poles: 5 PCS
- Contact gauge: 1.5
- Min./max. wire cross section: 0.35-2.5 mm²
- IP protection class: IP67
- Max. nominal voltage: 24 V/DC
- Max. current: 14 A
- Temperature range: -40 to 125 °C
- Material: PA 6.6 - Polyamide
- Colour: Black
- Dimensions (H x L x W): 20mm x 40mm x 30mm
- Weight: 0.05 kg
Key Features
- Complies with IEC 529 and DIN 40050 standards
- IP67 rated for dust and waterproof protection
- Suitable for wire cross sections from 0.35 to 2.5 mm²
- Max nominal voltage of 24 V/DC and max current of 14 A
- Temperature range from -40 to 125 °C
- Durable PA 6.6 Polyamide material construction
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper sealing and electrical safety.
Applications

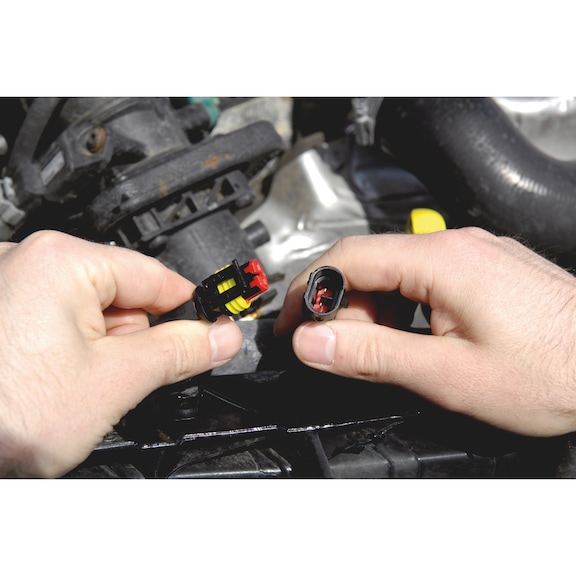

- Automotive wiring harnesses
- Industrial electrical connections

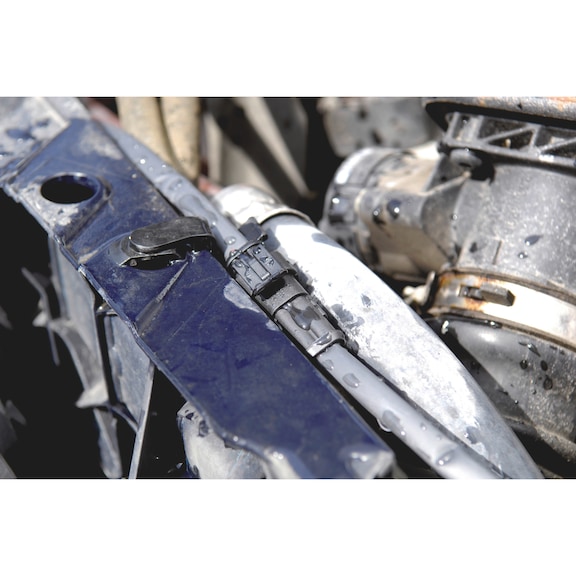

- Outdoor and harsh environment electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- IP67 protection reduces risk of environmental damage and extends product lifespan
- Durable materials reduce need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Waterproof Pin Housing TE Superseal 15 Series 5PCS is available for immediate purchase, ideal for automotive and industrial electrical applications requiring robust waterproof connectors.
