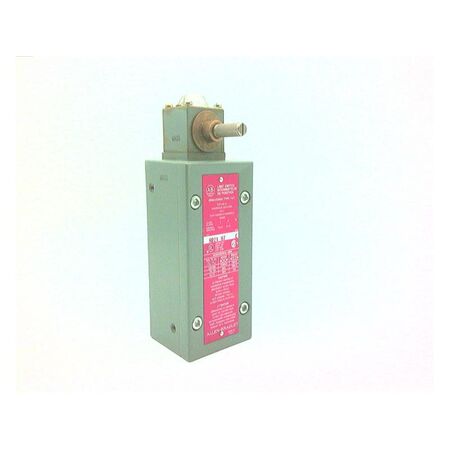

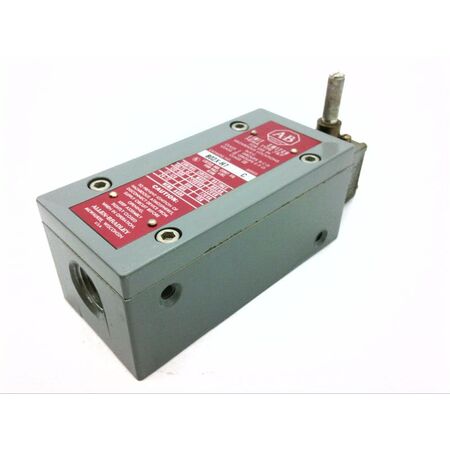

Watertight Limit Switch 802XH7 | Hazardous Location | Rotary Lever Arm | Snap Acting Contacts | by Allen-Bradley
The Watertight Limit Switch 802XH7 is designed for hazardous locations, featuring a rotary lever arm for precise actuation and snap acting contacts. With a robust watertight design, it operates in extreme temperatures from -46°C to 121°C, making it ideal for industrial automation and machinery monitoring. Ensure safety and compliance with this reliable switch, perfect for conduit entry electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Model: 802XH7
- Type: Watertight limit switch
- Contact Configuration: 1 Normally Open (NO) / 1 Normally Closed (NC)
- Circuits: 2
- Conduit Entry: 1/2 inch NPT
- Operating Temperature Range: -46°C to 121°C
- Actuation: Rotary lever arm with spring return
- Contact Action: Snap acting
- Dimensions (H x L x W): 120mm x 60mm x 80mm
- Weight: 1.2 kg
Key Features
- Watertight design suitable for harsh environments
- Rotary lever arm for precise actuation
- Spring return mechanism with snap acting contacts
- Two circuits with 1 NO / 1 NC standard contacts
- Conduit entry with 1/2 inch NPT threading
- Operates in temperature range from -46°C to 121°C
Professional Installation Requirements
- Installation by a qualified electrician or technician experienced with hazardous location equipment is required to ensure safety and compliance.
Applications
- Industrial automation control systems
- Hazardous location machinery monitoring
- Rotary lever arm position detection
- Conduit entry electrical installations
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Reliable operation minimizes energy loss in control systems
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 802XH7 Watertight Limit Switch is available for immediate purchase, ideal for industrial and hazardous location applications requiring reliable position detection.
