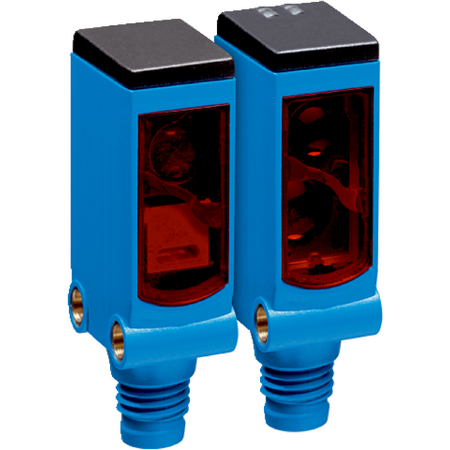

WE4S-3F3130, Throug beam switch, receiver, Pin Point LED, PNP, dark switching, 150 mm cable with connector M8, 3 pin
The SICK WE4S-3F3130 is a through-beam photoelectric sensor featuring a PinPoint LED, dark switching PNP output, and robust IP67/IP66 rated slim ABS housing, ideal for precise object detection in industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WE4S-3F3130, Throug beam switch, receiver, Pin Point LED, PNP, dark switching, 150 mm cable with connector M8, 3 pin
Brand: SICK
SKU: 2058690
Alternatively Known As: Through Beam Sensor, Photoelectric Sensor, PNP Photoelectric Switch, PinPoint LED Sensor, Industrial Object Sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max: 0 m to 5 m
- Sensing range typical: 0 m to 4.5 m
- Light source: PinPoint LED
- Light type: Visible red light
- Light spot size at 2 m: Ø 50 mm
- Wavelength: 650 nm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Output type: PNP, dark switching
- Max output current: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Circuit protection: A, C, D
- Housing material: Plastic ABS
- Front screen: Plastic PMMA
- Cable: Plastic PVC, 150 mm length with M8 3-pin connector
- Enclosure rating: IP67, IP66
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with PinPoint LED
- Sensing range up to 4.5 meters
- Visible red light with 650 nm wavelength
- Dark switching PNP output with max 100 mA current
- Slim plastic ABS housing with IP67 and IP66 protection
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
- Cable with M8 3-pin connector for easy installation
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct electrical connections and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67/IP66 rated housing reduces environmental damage and waste
- Long service life reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK WE4S-3F3130 Through Beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
