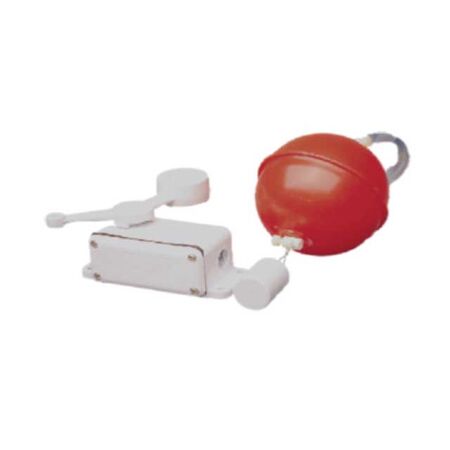

Weatherproof Flow Switch 250V 20A | Automatic Operation | Easy Wiring

BRAND: Clipsal
SKU: FS5
$612.90 List price: $889.00
+ −
30 Days Return Delivery Options
<p>Weatherproof flow switch with 250V, 20A capacity and automatic operation—ideal for industrial and marine applications. Built for durability, with easy wiring and submersible components impervious to saltwater and oils.</p>

Product Name/Title: Weatherproof Flow Switch 250V 20A | Automatic Operation | Easy Wiring

SKU: FS5/3

Alternatively Known As: Float Ball Flow Switch, Automatic Float Switch, Water Flow Sensor, Submersible Flow Switch

Technical Specifications
  • Voltage: 250V
  • Current Rating: 20A
  • Switch Type: Single Pole Double Throw (SPDT)
  • Includes 2.7m float suspension line, 1 line weight, operating stops, and float ball
  • Enclosure: Fully sealed alloy
  • Micro-switch: Replaceable
  • Submersible components resistant to saltwater, alkaline solutions, oils, and weak acids
  • Dimensions (H x L x W): 100mm x 150mm x 100mm
  • Weight: 0.5 kg
Key Features
  • Fully sealed alloy enclosure
  • Automatic operation
  • Easy wiring
  • Replaceable micro-switch
  • Submersible components impervious to saltwater, alkaline solutions, oils, and weak acids
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure proper wiring and compliance with electrical standards.
Applications
  • Water flow monitoring in industrial and commercial systems
  • Pump control and protection
  • Water treatment plants
  • Marine and saltwater environments
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable sealed design reduces waste and replacement frequency
  • Supports efficient water management and pump control to reduce energy consumption
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Weatherproof Flow Switch FS5/3 is available now for immediate purchase. Ideal for industrial, marine, and water management applications.
