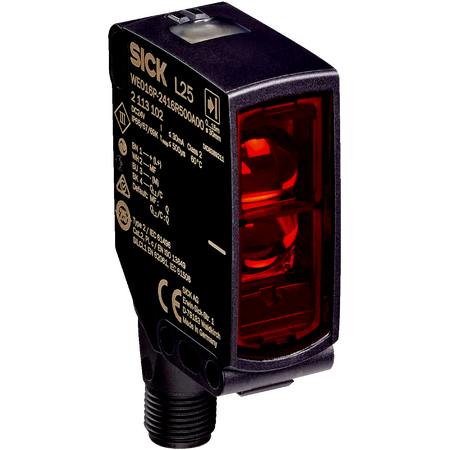

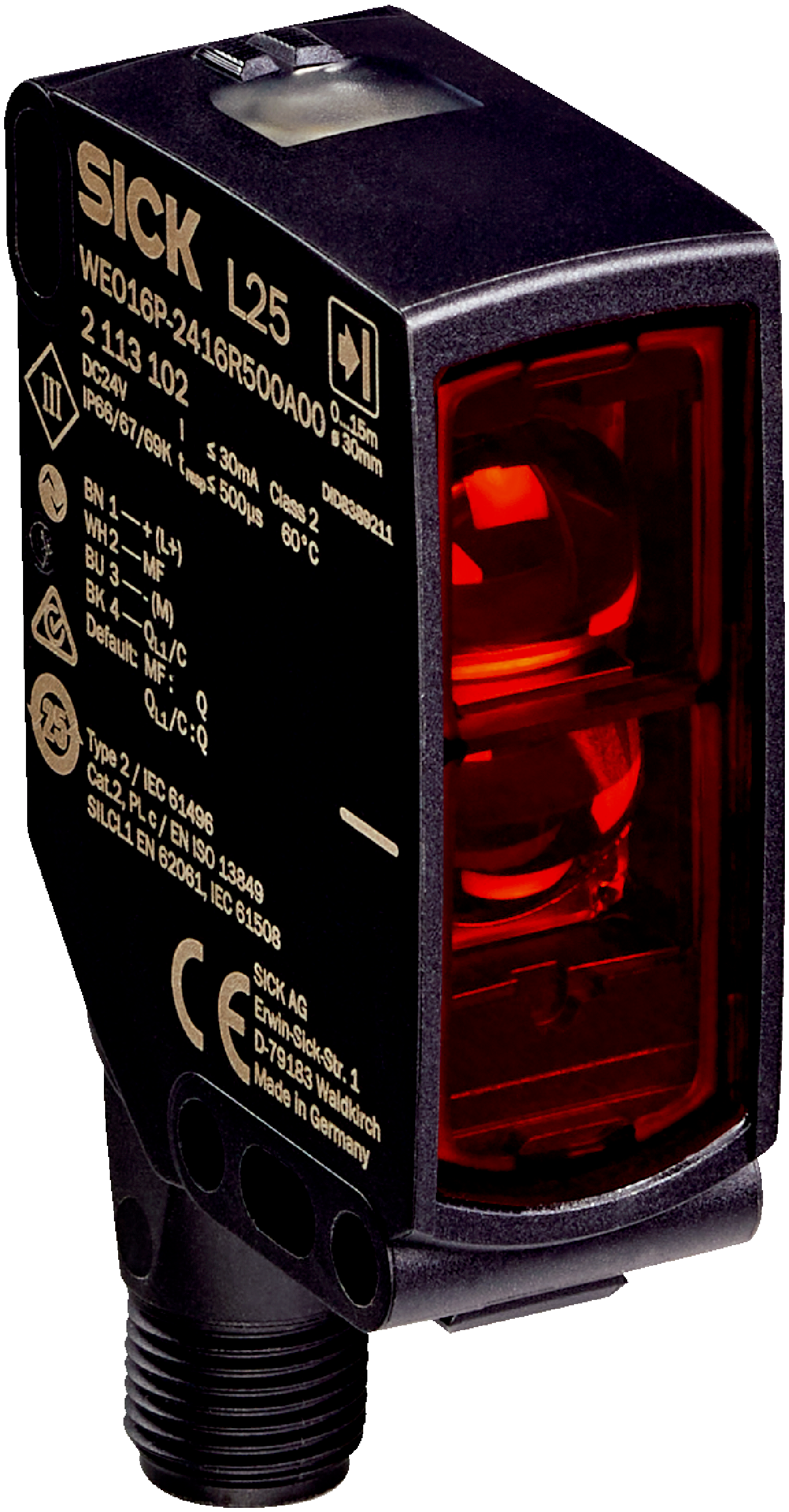

WEO16I-2416R500A00ZLLZZZZZZZZ1 | Safety light-beam sensors
The SICK WEO16I-2416R500A00ZLLZZZZZZZZ1 is a high-performance safety light-beam sensor featuring near-infrared invisible light, smart diagnostics, and robust IP69K rated housing for industrial safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WEO16I-2416R500A00ZLLZZZZZZZZ1 | Safety light-beam sensors
Brand: SICK
SKU: 2113105
Alternatively Known As: Safety light beam sensor, photoelectric safety sensor, industrial safety sensor, near-infrared safety sensor
Technical Specifications
- Type of light: Near-infrared (NIR), invisible
- Scanning range: 20 m
- Number of beams: 1
- Detection capability: 30 mm
- Response time: 0.5 ms + test device response time
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Test rate (external test): 100/s (EN ISO 13849)
- Performance level: PL c (EN ISO 13849)
- PFHD: 1.0 x 10^-6 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Connection type: Male connector M12, 4-pin, 270° rotatable
- Configuration method: Via IO-Link
- Display elements: LEDs
- Alignment aid: BluePilot diagnostic LEDs
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Residual ripple: ≤ 5 V
- Power consumption: ≤ 30 mA
- Switching outputs: Push–pull
- Current loading: ≤ 100 mA
- Housing material: VISTAL®
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Dimensions (H x L x W): 42mm x 55mm x 20mm
- Weight: 0.1 kg
Key Features
- Smart Sensor with efficient diagnosis and communication
- Near-infrared (NIR), invisible light type
- 20 m scanning range with 1 beam
- Detection capability of 30 mm
- Fast response time of 0.5 ms plus test device response time
- Supports cascading up to 4 single-beam photoelectric safety switches
- LED display elements and BluePilot alignment aid
- IO-Link interface for configuration and data exchange
- Push-pull switching output with current loading up to 100 mA
- Robust rectangular design with VISTAL® housing
- High protection rating: IP66, IP67, IP69K
- Wide ambient operating temperature range from -40 °C to +60 °C
- Vibration and shock resistant
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and electrical standards to ensure compliance and optimal performance.
Applications
- Industrial safety monitoring
- Machine guarding
- Automation safety systems
- Hazardous area detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 30 mA reduces energy usage
- Durable housing and high protection ratings extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WEO16I-2416R500A00ZLLZZZZZZZZ1 Safety Light-Beam Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
