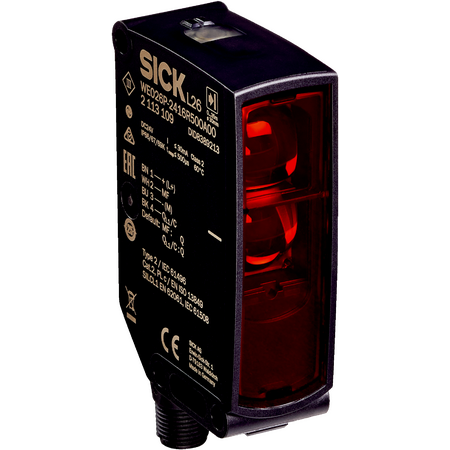

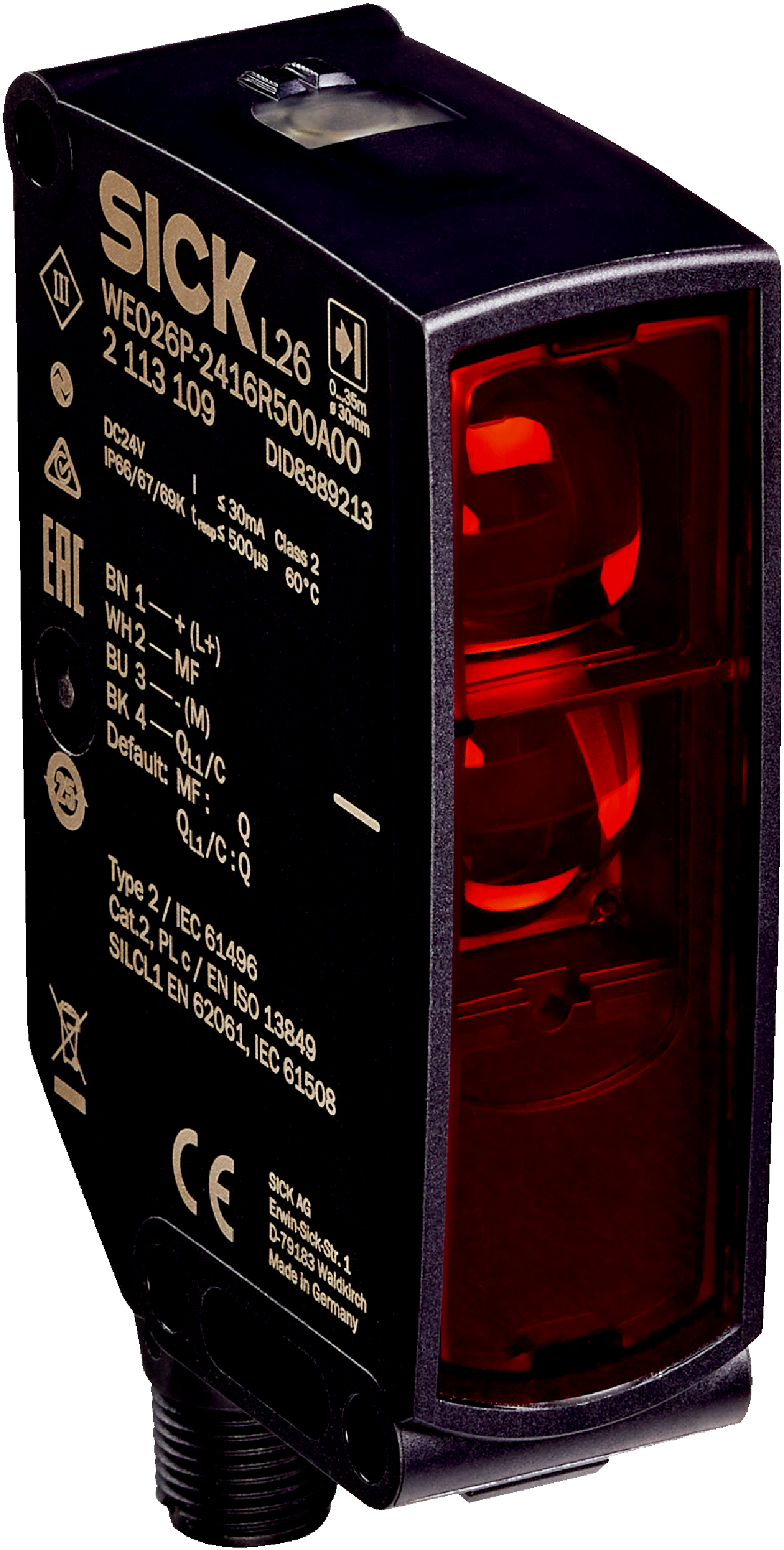

WEO26P-2416R500A00ZLLZZZZZZZZ1 | Safety light-beam sensors
The SICK WEO26P-2416R500A00ZLLZZZZZZZZ1 is a high-performance safety light-beam sensor featuring smart diagnostics, a 50 m scanning range, and robust IP69K rated housing, ideal for industrial safety and automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WEO26P-2416R500A00ZLLZZZZZZZZ1 | Safety light-beam sensors
Brand: SICK
SKU: 2113109
Alternatively Known As: Safety light beam sensor, photoelectric safety sensor, industrial safety sensor, safety light curtain sensor
Technical Specifications
- Type of light: Red visible light
- Scanning range: 50 m
- Number of beams: 1
- Detection capability: 30 mm
- Response time: 0.5 ms plus test device response time
- Cascading: Supports up to 4 devices in series
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Test rate: 100/s (EN ISO 13849)
- Performance level: PL c (EN ISO 13849)
- PFHD: 1.0 x 10^-6 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Connection type: Male M12, 4-pin, 270° rotatable connector
- Configuration: Via IO-Link with SOPAS ET software
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Residual ripple: ≤ 5 V
- Power consumption: ≤ 30 mA
- Switching outputs: Push-pull
- Current loading: ≤ 100 mA
- Housing material: VISTAL®
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Dimensions (H x L x W): 48mm x 82mm x 26mm
- Weight: 0.2 kg
Key Features
- Smart Sensor with efficient diagnosis and communication
- Red visible light type
- Scanning range up to 50 m
- Single beam detection with 30 mm detection capability
- Fast response time of 0.5 ms plus test device response time
- Supports cascading of up to 4 single-beam photoelectric safety switches
- Alignment aid with diagnostic LEDs and BluePilot for easy sensor alignment
- Application diagnostic output (ADO) and IO-Link communication
- Push-pull switching output with current loading up to 100 mA
- Robust rectangular design with VISTAL® housing
- High protection rating IP66, IP67, and IP69K
- Wide ambient operating temperature range from -40 °C to +60 °C
- Vibration and shock resistant
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial safety monitoring
- Machine guarding
- Access control in hazardous areas
- Automation and manufacturing safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 30 mA reduces energy usage
- Durable housing and high protection rating extend product lifespan, reducing waste
- Complies with China RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WEO26P-2416R500A00ZLLZZZZZZZZ1 Safety Light-Beam Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
