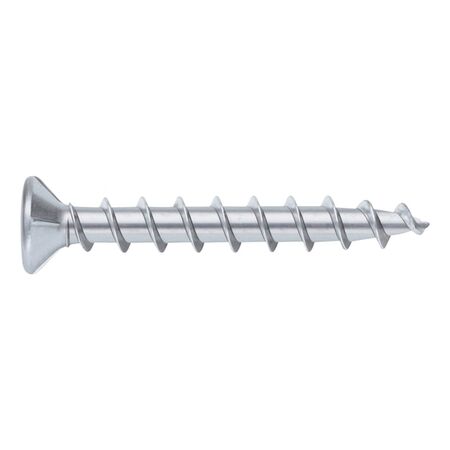

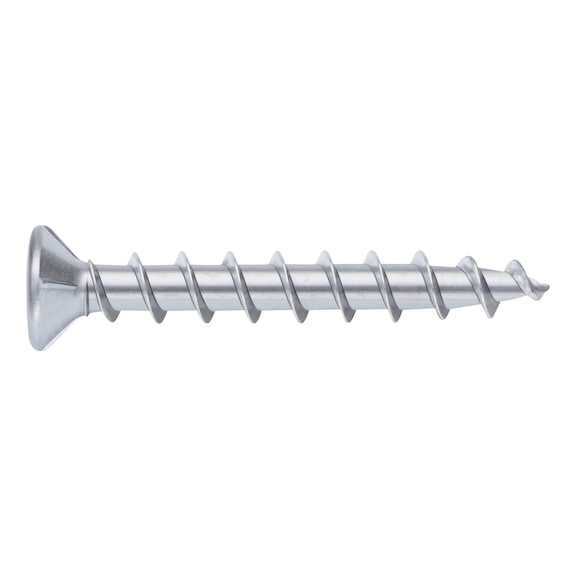

Window Construction Screw FBS | Raised Countersunk Head | Zinc Plated | AW20 Drive | @Pack of 1500 | by Wurth
Window construction screws with a raised countersunk head and zinc plating are perfect for window installation and general construction. Designed for easy penetration with an AW20 drive and enhanced corrosion resistance, these screws are ideal for both wood and metal fastening applications. With compliance to AS/NZS 1170 standards, they ensure durability and reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Window Construction Screw FBS | Raised Countersunk Head | Zinc Plated | AW20 Drive | @Pack of 1500 | by Wurth
Brand: Wurth
SKU: 188294145
Alternatively Known As: Window screw, Raised head screw, Countersunk head screw, Self-tapping construction screw, AW20 drive screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated with thick-layer passivation
- Nominal diameter: 4.1 mm
- Length: 45 mm
- Head diameter: 7 mm
- Head height: 2.2 mm
- Internal drive: AW20
- Head type: Raised countersunk head
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Core diameter: 2.5 mm
- Tip shape: Pinpoint
- Product weight per item: 2.4 g
- Salt spray test: 240 hours without red rust (DIN EN ISO 9227-NSS)
- Thermal stability of corrosion layer: 150°C
- Dimensions (H x L x W): 2.2mm x 45mm x 7mm
- Weight: 0.0024 kg
Key Features
- Steel material with galvanized thick-layer passivation
- Deltacoll-coated for enhanced corrosion protection
- AW20 drive with special thread and needle tip for easy penetration
- Head diameter of 7.0 mm with raised countersunk head design
- Increased corrosion protection with 240 hours salt-spray mist test compliance
- Thermally stable corrosion protection layer up to 150°C
- Cr(VI)-free corrosion protection layer
Professional Installation Requirements
- Installation by a qualified tradesperson or professional is recommended to ensure proper fastening and compliance with building standards.
Applications
- Window construction and installation
- General construction fastening
- Wood and metal fastening requiring corrosion resistance
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Cr(VI)-free corrosion protection layer for environmental safety
Warranty Information
Warranty information available upon request from Wurth, typically covering manufacturing defects.
Available Now
Wurth Window Construction Screw FBS 1500 PCS is available for immediate purchase, ideal for window installation and general construction applications.
