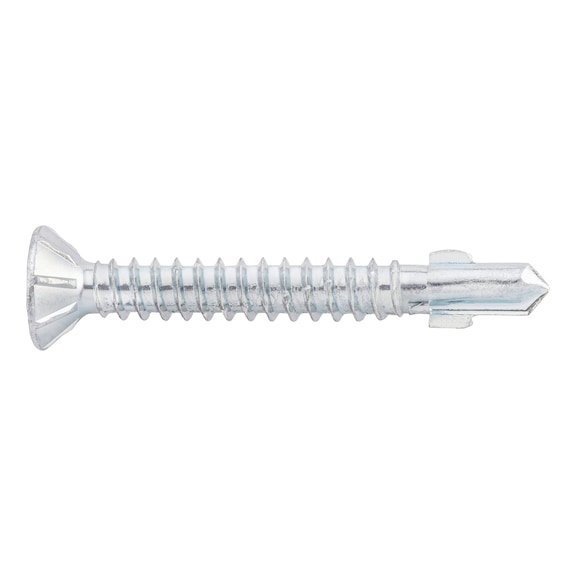

Wing-tip Drilling Screw with Countersunk Milling Head | AW Drive | Zinc-Plated Steel | @Pack of 500 | by Wurth
Wing-tip drilling screws with a countersunk milling head and AW drive are perfect for woodworking and construction. Made from zinc-plated steel, these self-tapping screws ensure efficient drilling and fastening in both hard and soft woods. Ideal for DIY enthusiasts and professionals alike, they provide optimum centering and fatigue-free screwing for superior results.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing-tip Drilling Screw with Countersunk Milling Head | AW Drive | Zinc-Plated Steel | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 219124238
Alternatively Known As: Wing-tip self-tapping screws, Countersunk wood screws, AW drive screws, Zinc-plated drilling screws
Technical Specifications
- Nominal diameter: 4.2 mm
- Length: 38 mm
- Head diameter: 8 mm
- Head height: 3.2 mm
- Drill tip length: 9 mm
- Material: Steel
- Surface: Zinc plated
- Head type: Countersunk milling head
- Internal drive: AW20
- Thread type: Self-tapping screw thread
- Min. recommended substructure thickness: 1.5 mm
- Max. material thickness to be drilled through (metal): 3 mm
- Max. material thickness for wood: 26 mm
- Recommended installation speed (idling): 1700-2500 rpm
- Approval: DIBt Z-14.4-634
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.2mm x 38mm x 8mm
- Weight: 0.05 kg
Key Features
- Zinc-plated steel for enhanced corrosion resistance
- Self-tapping thread for efficient drilling and fastening
- Countersunk milling head designed for use with hard and soft woods
- AW drive system for enhanced torque transmission and longer tool life
- Optimum centring and better mounting output with fatigue-free screwing
- Even force distribution prevents damage to surface-protection coating
- DIBt National technical approval for diameters 3.9 mm, 4.2 mm, and 4.8 mm
Professional Installation Requirements
- Installation should be performed using application tools with a depth stop and claw coupling. Use a suitable drill driver such as a cordless drill driver with depth control for best results.
Applications
- Woodworking: Suitable for use with hard and soft woods
- Construction: Ideal for fastening in wood and metal substructures
- DIY and Professional: For use in furniture assembly, cabinetry, and general wood construction
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant, ensuring reduced hazardous substances
- Durable zinc plating extends product life, reducing waste
Warranty Information
Wurth provides a quality guarantee on manufacturing defects. Proper use and installation recommended for optimal performance.
Available Now
The Wurth Wing-tip Drilling Screw with Countersunk Milling Head AW Drive 500 PCS is available now for immediate purchase. Ideal for woodworking, construction, and professional fastening applications.
