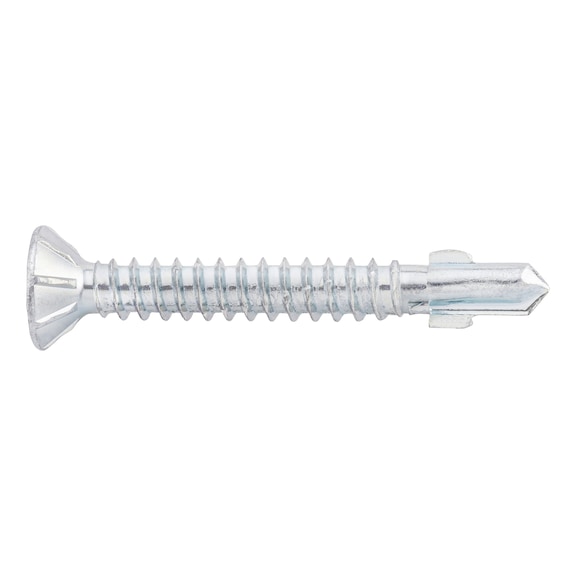

Wing-tip Drilling Screw with Countersunk Milling Head | Zinc-Plated Steel | AW Drive System | @Pack of 500 | by Wurth
Wing-tip drilling screws with a countersunk milling head are perfect for woodworking and construction applications. Made from zinc-plated steel, these self-tapping screws feature an AW drive system for enhanced torque transmission and fatigue-free screwing. Ideal for both hard and soft woods, they ensure efficient drilling and fastening in various materials, making them a reliable choice for DIY enthusiasts and professionals alike.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing-tip Drilling Screw with Countersunk Milling Head | Zinc-Plated Steel | AW Drive System | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 219125550
Alternatively Known As: Wing-tip self-tapping screws, Countersunk wood screws, AW drive drilling screws, Zinc-plated wood screws
Technical Specifications
- Nominal diameter: 5.5 mm
- Length: 50 mm
- Head diameter: 10.8 mm
- Head height: 4.4 mm
- Drill tip length: 11 mm
- Material: Steel
- Surface finish: Zinc plated
- Head type: Countersunk milling head
- Internal drive: AW25
- Thread type: Self-tapping screw thread
- Minimum recommended substructure thickness: 2 mm
- Maximum material thickness to be drilled through (metal): 5 mm
- Maximum material thickness for wood: 35 mm
- Recommended installation speed (idling): 1200-1800 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.4mm x 50mm x 10.8mm
- Weight: 0.05 kg
Key Features
- Zinc-plated steel for enhanced corrosion resistance
- Self-tapping thread for efficient drilling and fastening
- Countersunk milling head designed for use with wood
- AW drive system for enhanced torque transmission and longer tool life
- Optimum centring and better mounting output with fatigue-free screwing
- Even force distribution prevents damage to surface protection coating
Professional Installation Requirements
- Installation requires use of application tools with depth stop and claw coupling; recommended to use a suitable drill driver such as a cordless drill driver with depth control for optimal performance and safety.
Applications
- Woodworking: Suitable for use with hard and soft woods
- Construction: For fastening in wood and metal substructures
- DIY and professional assembly requiring self-tapping screws
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Wurth provides standard product quality assurance; warranty against manufacturing defects applies as per company policy.
Available Now
Wurth Wing-tip drilling screws with countersunk milling head AW drive 500 PCS are available for immediate purchase, ideal for woodworking and construction fastening applications.
