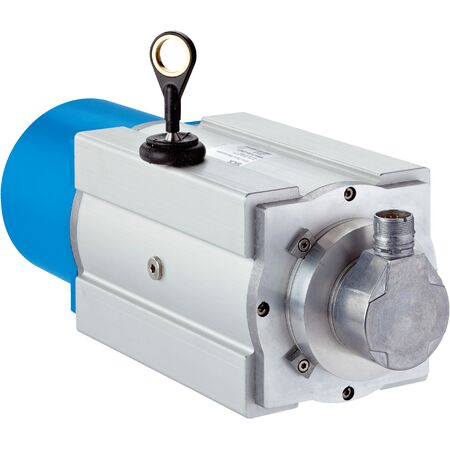

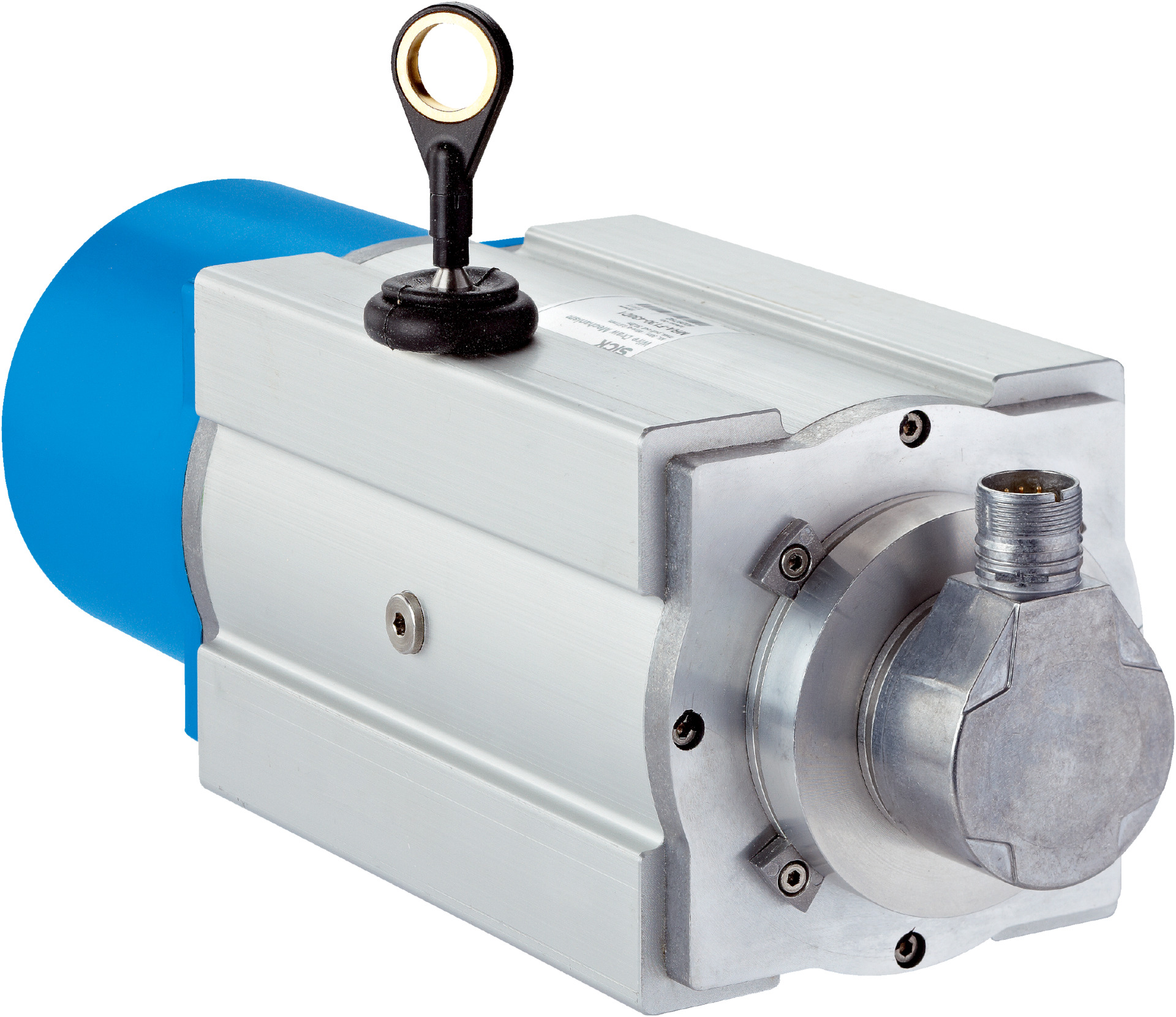

Wire Draw Encoder PRF13-E1AM3020 | 30m Measurement Range | 0.03mm Resolution | IP64/IP67 Protection | by SICK
The Wire Draw Encoder PRF13-E1AM3020 offers a high measurement range of up to 30 meters and an impressive resolution of 0.03 mm, making it ideal for industrial automation and safety-related applications. With a robust aluminum and plastic housing, it ensures durability and reliability, while its low power consumption and long service life of up to 1,000,000 cycles make it a smart choice for machine monitoring and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wire Draw Encoder PRF13-E1AM3020 | 30m Measurement Range | 0.03mm Resolution | IP64/IP67 Protection | by SICK
Brand: SICK
SKU: 1034339
Alternatively Known As: Wire Draw Encoder, Length Measurement Encoder, Incremental Wire Encoder
Technical Specifications
- Measurement range: 0 m to 30 m
- Encoder type: Incremental encoders
- Resolution (wire draw + encoder): 0.03 mm
- Repeatability: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: Incremental / HTL / Push pull
- Programmable/configurable interface with factory settings
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 0.81 mm
- Housing material: Aluminum (anodised) and plastic
- Spring return force: 10 N to 20 N
- Length of wire pulled out per revolution: 332.4 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 6 m/s
- Operating temperature range: -30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP64 (mechanic IP67, encoder IEC 60529)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 6.5 kg
Key Features
- High measurement range up to 30 meters
- Incremental encoder with programmable/configurable interface
- High resolution of 0.03 mm with excellent repeatability and linearity
- Robust aluminum and plastic housing with IP64/IP67 protection
- Long service life with up to 1,000,000 cycles
- Low power consumption of ≤ 0.7 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder systems to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise length measurement
- Safety-related applications requiring reliable wire draw measurement
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PRF13-E1AM3020 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
