Wire Draw Mechanism MRA-F130-130D1 30m Measuring Range IP64 Rated SICK

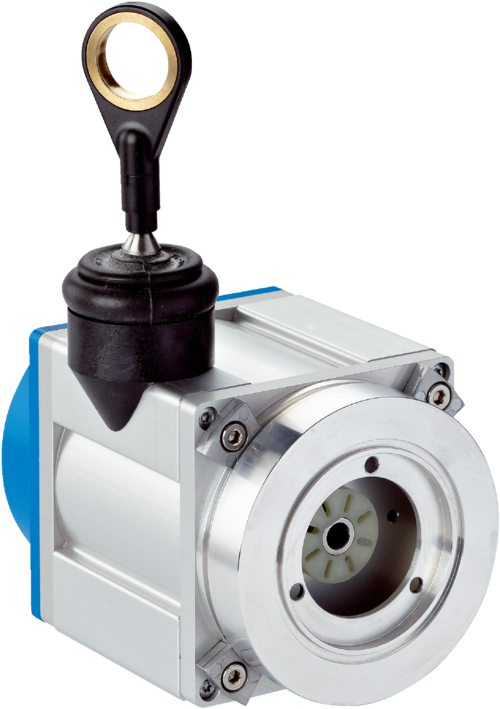

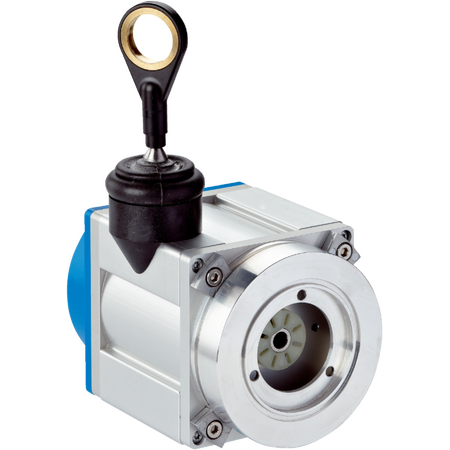

The MRA-F130-130D1 wire draw mechanism is designed for precise length measurement in industrial automation
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Wire Draw Mechanism, Wire Encoder, Cable Extension Sensor, Length Measurement Device
Technical Specifications
- Measuring range: 0 m to 30 m
- Reproducibility: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Weight: 6.2 kg (wire draw mechanism)
- Measuring wire weight: 2.6 g/m
- Measuring wire material: Highly flexible stranded stainless steel 1,4401 V4A
- Spring housing material: Plastic
- Wire draw mechanism housing: Anodised aluminum and plastic
- Length of wire pulled out per revolution: 332.4 mm
- Actual wire draw length: 30.2 m
- Spring return force: 10 N or 20 N
- Measuring wire diameter: 0.81 mm
- Wire acceleration: 15 m/s²
- Operating speed: 6 m/s
- Ambient operating temperature: –30 °C to +70 °C
- Enclosure rating mechanic: IP64
- Life expectancy: Approximately 1,000,000 cycles
- Dimensions (H x L x W): 150mm x 350mm x 150mm
- Weight: 6.2 kg
Key Features
- HighLine wire draw mechanism for servo flange with 6 mm shaft
- Measuring range from 0 m to 30 m
- Reproducibility ≤ 2 mm and linearity ≤ ± 2 mm
- Hysteresis ≤ 5 mm
- Highly flexible stranded stainless steel measuring wire
- Spring return force options of 10 N or 20 N
- Operating speed up to 6 m/s
- Enclosure rating IP64 for mechanical parts
- Typical life of wire draw mechanism: 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with servo flange and wire draw mechanisms to ensure accurate setup and safety compliance.
Applications
- Industrial automation and measurement systems
- Servo flange applications requiring precise wire length measurement
- Environments requiring robust and accurate wire draw mechanisms
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials and long lifecycle reduce waste and replacement frequency
- Highly flexible stainless steel wire minimizes material fatigue and environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MRA-F130-130D1 wire draw mechanism is available for immediate purchase, ideal for industrial automation and precise measurement applications.
