Wire Suspension Kit 2mm Diameter | 5m Length | Tool-Free Adjustment | Electrogalvanized by Cabac

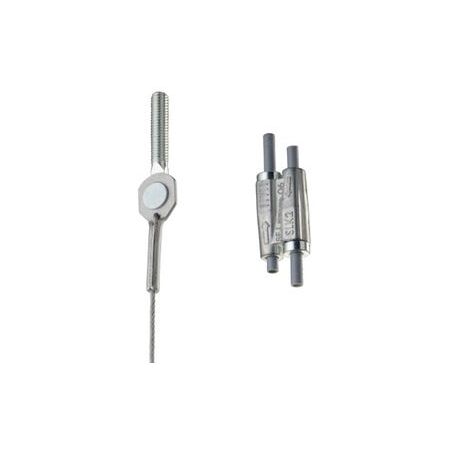

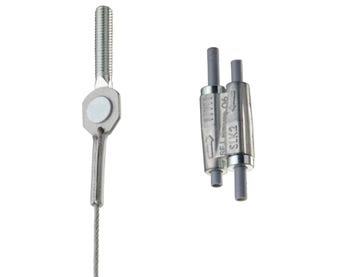

The CADDY Speed Link 2mm wire 5m long with M8 rod and tensioner by Cabac offers an innovative, tool-free tensioning system for quick and easy installation of suspended trays and ducted systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CADDY Speed Link 2mm wire 5m long with m8 rod and tensioner
Brand: Cabac
SKU: SLK2L5SEM8
Alternatively Known As: Speed Link Wire Suspension Kit, CADDY Wire Suspension System, M8 Threaded Rod Suspension Kit, Cable Suspension System
Technical Specifications
- Material: Steel, Polypropylene, Zinc Alloy
- Finish: Electrogalvanized
- Rope diameter: 2mm
- Load rating: Rated to strength of the cable
- Max angle of entry: 90 degrees
- Thread: M8
- Thread length: 45mm
- Dimensions (H x L x W): n/a mm x 5000mm x n/a mm
- Weight: 0.5 kg
Key Features
- Complete system includes wire, locking device, and pre-assembled threaded stud end fitting
- Attaches to structures with threaded anchors or devices with threaded hole
- Connects directly to threaded devices in various assemblies
- Thread can be mounted vertically or horizontally
- Tool-free adjustment or removal
- No tool required to re-adjust tension or release
Professional Installation Requirements
- Professional installation recommended to ensure correct tensioning and secure attachment to structural elements.
Applications
- Suspended trays installation
- Ducted systems support
- Trapeze assemblies
- Light fixtures suspension
- HVAC assemblies
- Signage suspension
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Electrogalvanized finish provides corrosion resistance, extending product life and reducing waste
- Durable materials reduce need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for specific warranty details.
Available Now
The CADDY Speed Link 2mm wire 5m long with M8 rod and tensioner is available now for immediate purchase. Ideal for fast and secure suspension of trays, ducted systems, and other structural supports.
