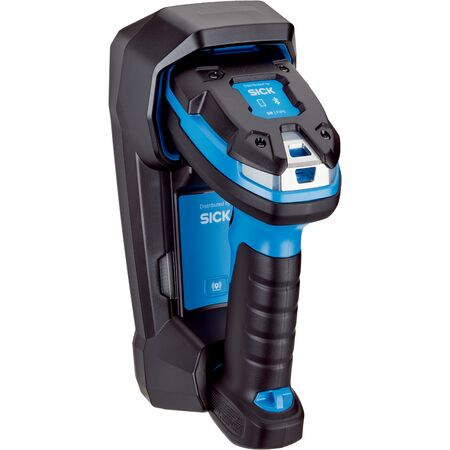

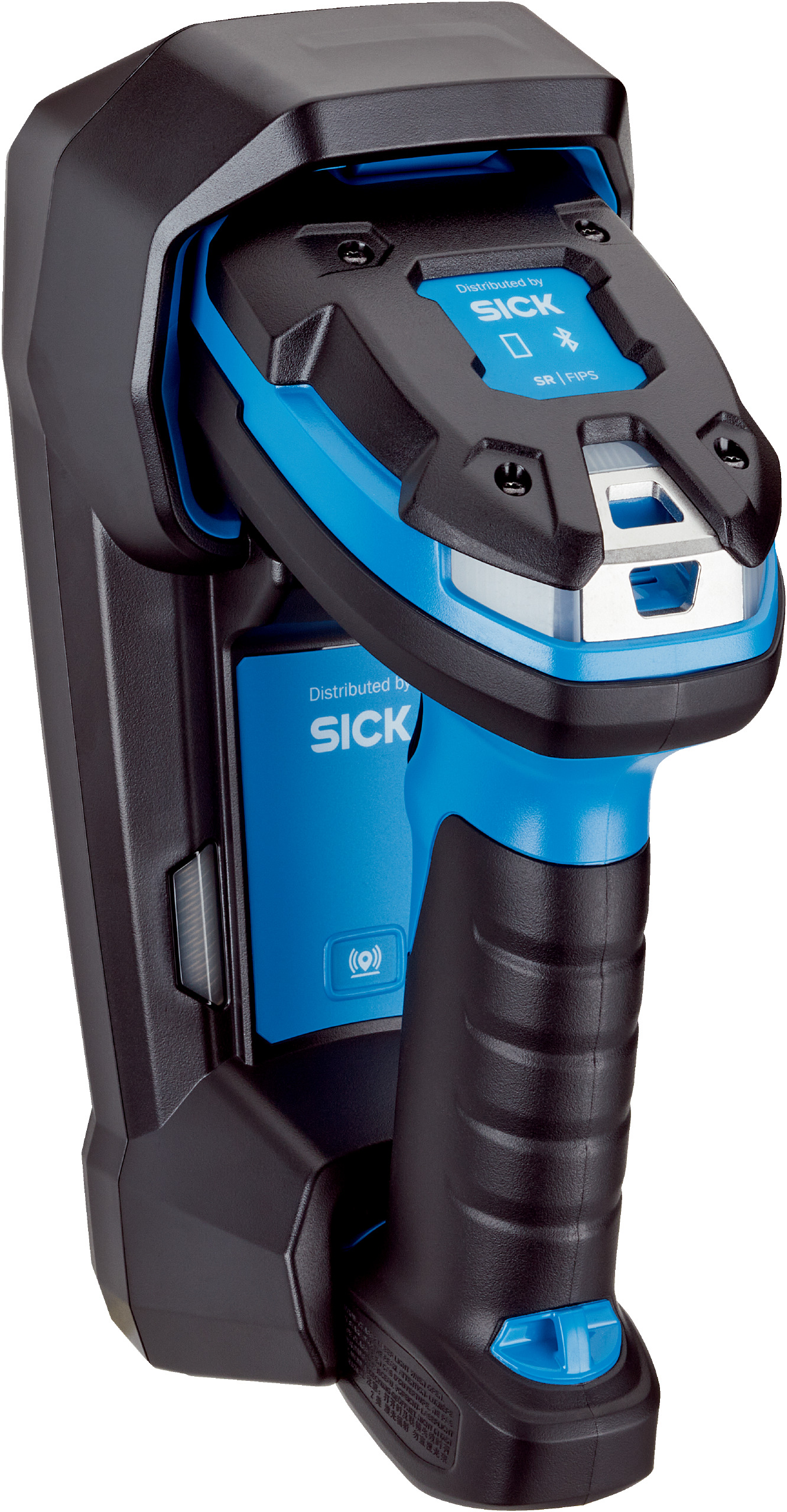

Wireless Industrial Barcode Scanner | 1D Code Reading | IP65 & IP68 Rated | by SICK
The Wireless Industrial Barcode Scanner is designed for efficient 1D barcode scanning in industrial applications. With a reading distance of up to 1,067 mm and an impressive battery capacity of 3,100 mAh, it supports over 100,000 scans per charge. Ideal for environments requiring robust performance, this scanner features IP65 and IP68 ratings for dust and water resistance, ensuring reliability in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Reading distance: 0 mm to 1,067 mm
- Code resolution: ≥ 0.102 mm
- Light source: LED visible red 617 nm, laser visible red 655 nm
- Supply voltage: 5 V DC ±10% via host, 12 V DC ±5% external supply
- Enclosure rating: IP65 and IP68
- Battery capacity: 3,100 mAh, supports over 100,000 scans per full charge
- Code buffer: 9,000 codes (EAN) for batch scanning
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT, PROFIBUS DP, Serial (RS-232 TTL), USB, Bluetooth V4.0
- Data transmission rate: ≤ 3 Mbit/s
- Configuration software: Z-Up Tool
- Dimensions (H x L x W): 185mm x 132mm x 77mm
- Weight: 0.4 kg
Key Features
- Wireless variant scanner design
- Reads 1D barcode types including Code 39, Code 128, GS1-128, UPC/EAN, MSI/Plessey, Interleaved 2 of 5, and various postal codes
- Wireless operating range up to 100 m (free view)
- Batch function for expansion of wireless radius
- Up to seven scanners communicate with one base station
- 3 LEDs for operational status, good read, and radio connection status
- Beeper with switch off option and vibration feedback
- Shock resistant to multiple falls onto concrete from 3 m height
- Ambient operating temperature from -20 °C to +50 °C
- Storage temperature from -40 °C to +70 °C
- Permissible relative humidity 95%, non-condensing
- Ambient light immunity up to 108,000 lx
Professional Installation Requirements
- Professional installation recommended to ensure proper configuration and integration with industrial systems.
Applications
- Industrial application for barcode scanning
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Wireless operation reduces cable waste and installation impact
- Rechargeable battery reduces disposable battery waste
- Durable design minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK ZI3678-SR0F263VZWW wireless industrial barcode scanner is available for immediate purchase, ideal for industrial barcode scanning applications requiring wireless flexibility and robust performance.
