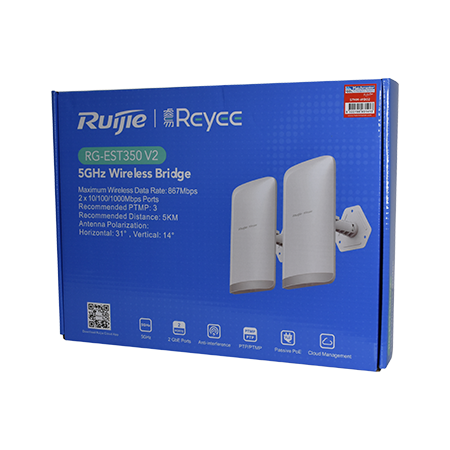

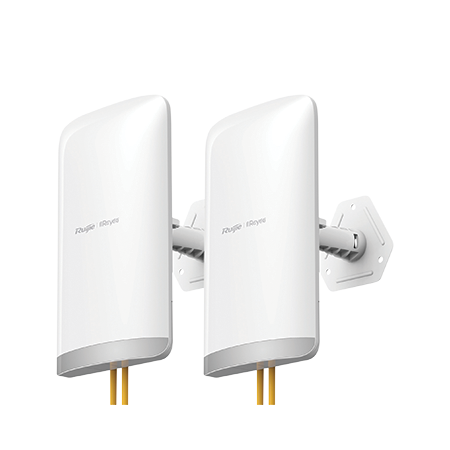

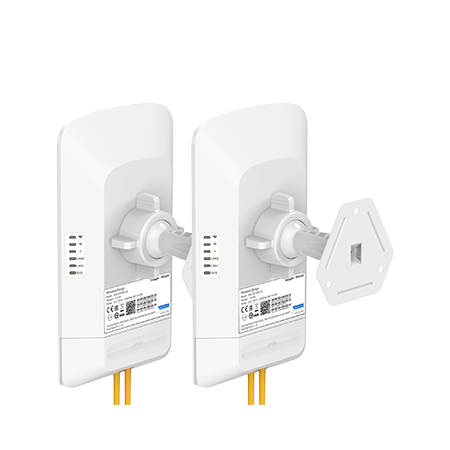

Wireless Network Bridge 15dBi | 5km Range | Weatherproof | PoE by Matchmaster
Wireless network bridge with 15dBi antenna and 5km range—ideal for outdoor point-to-point connectivity. Built for residential and commercial use, with weatherproof design and PoE compatibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 15dBi 5km Wireless Network Bridge
Brand: Matchmaster
SKU: 57MM-WB02
Alternatively Known As: Wireless Bridge, 5km Wireless Network Bridge, 15dBi Wireless Bridge
Technical Specifications
- Protocol and Standard: 802.11ac/n/a
- Wireless Data Rate: 867 Mbps
- Frequency Bands: 5 GHz: 802.11a/n/ac
- Max transmit Power: 26 dBm
- Operating Temperature: –30°C to +55°C
- Storage Temperature: –40°C to +70°C
- Operating Humidity: 5% to 95% RH (non-condensing)
- MTBF: > 400000 hours
- Working Distance: 5 km
- Dimensions (H x L x W): 48mm x 132mm x 230mm
- Weight: 0.5 kg
Key Features
- 5GHz single-band dual-stream chip with 867Mbps wireless transmit rate up to 5km range
- One-click setup and management via the free cloud app
- PTMP supported bridging (Example: one recorder, multiple cameras)
- High durability: IP54 rating provides dust, water and heat protection for outdoor environments
- Power supply redundancy support (12V and 24V)
- Can be wall or pole mounted
Professional Installation Requirements
- Professional installation is recommended for optimal performance.
Applications
- Farms and rural properties
- Tower cranes
- Factories
- Campuses
- Construction sites
Environmental Benefits
- Energy-efficient design reduces power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The 15dBi 5km Wireless Network Bridge is available now for immediate purchase. Ideal for outdoor applications requiring reliable data connectivity.
