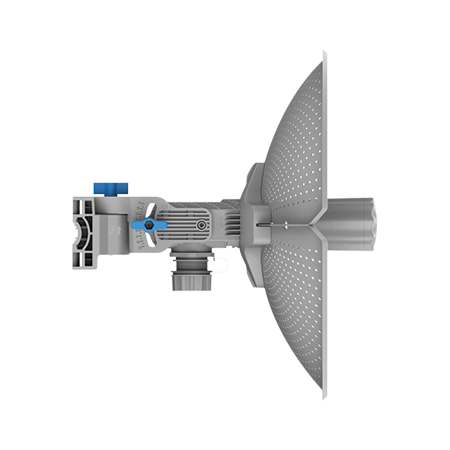

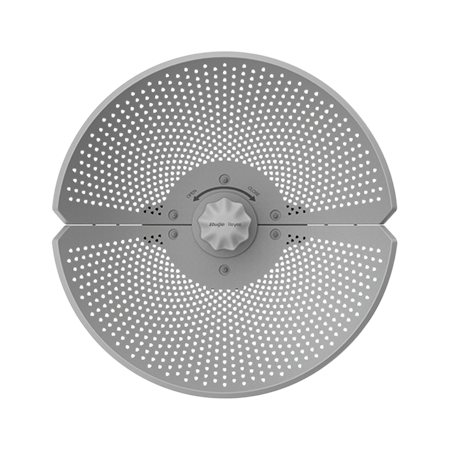

Wireless Network Bridge 23dBi | 15km Range | IP65 Weatherproof | 2.4/5GHz by Matchmaster
Wireless network bridge with 23dBi gain and up to 15km range—ideal for residential, commercial, and rural networking. Built for outdoor use, with IP65 weatherproof design and dual-band 2.4/5GHz frequency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 23dBi 15km Wireless Network Bridge
Brand: Matchmaster
SKU: 57MM-WB05
Alternatively Known As: Wireless Bridge, 5 GHz Antenna, Long Range Wireless Link
Technical Specifications
- Working Distance: 15 KM
- Gain: 23 dBi
- Angle: Vertical 9°, Horizontal 9°
- Capacity: 5 GHz, 867 Mbps
- Port: 1 x 10/100/1000 Mbps
- IP Rating: IP65
- Operation Temperature: –40℃ to 70℃
- Electrostatic Protection: ±24 kV Contact/Air
- Lighting: 6 kV
- Power: 24 V Passive PoE
- LED: 3 Signal Strength LED
- Dimensions (H x L x W): 200mm x 100mm x 300mm
- Weight: 1.5 kg
Key Features
- Directional 5 GHz wireless bridge with 23 dBi gain.
- Transmits and receives signals at a 9° angle up to 15 km.
- Supports PTP and PTMP networks with up to 32 clients.
- Free cloud management for setup and remote monitoring.
- Includes site survey tool for network design and configuration.
- One-touch pairing system for easy connection.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and alignment.
Applications
- Linking buildings
- Farms
- Mining sites
- Creating long-range wireless links
Environmental Benefits
- Reduces the need for expensive fiber backhauls, promoting cost-effective networking solutions.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Matchmaster 23dBi Wireless Network Bridge is available now for immediate purchase. Ideal for networking applications in various environments.
