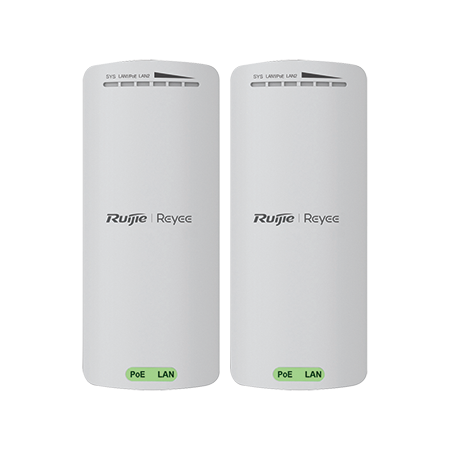

Wireless Network Bridge 500m | 8dBi Antenna | Dual 10/100 LAN Ports by Matchmaster
Wireless network bridge with 8dBi antenna and dual 10/100 LAN ports—ideal for extending internet coverage in residential and commercial settings. Built for long-range connectivity, with reliable wired connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 8dBi 500m Wireless Network Bridge, Dual 10/100 LAN Ports
Brand: Matchmaster
SKU: 57MM-WB03
Alternatively Known As: Wireless Bridge, 8dBi Wireless Bridge, Network Bridge, Wireless Data Bridge
Technical Specifications
- Transmission Protocol: IEEE 802.11b/g/n
- Operating Band: 2.400～2.483GHz
- Maximum Throughput: Up to 300 Mbps at 2.4 GHz
- Max. Transmit Power: ≤100 mW (20 dBm) adjustable
- Operating Temperature: -30°C to 60°C
- Storage Temperature: -40°C to 70°C
- Operating Humidity: 5% to 95% (non-condensing)
- Power Consumption: < 5W
- Dimensions (H x L x W): 42mm x 165.5mm x 68.7mm
- Weight: 0.3 kg
Key Features
- 8dBi directional antennas for enhanced range
- Dual 10/100 RJ45 ports for direct-to-device connection
- IP55 weatherproof rating for outdoor use
- Supports up to 10 times 3MP cameras at 100m or 5 times at 500m
- One-click setup and management via free cloud app
Professional Installation Requirements
- Professional installation is recommended for optimal performance.
Applications
- Farms and rural properties
- Tower cranes
- Factories
- Campuses
- Construction sites
Environmental Benefits
- Energy-efficient design reduces power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Matchmaster 8dBi 500m Wireless Network Bridge is available now for immediate purchase. Ideal for various outdoor and industrial applications.
