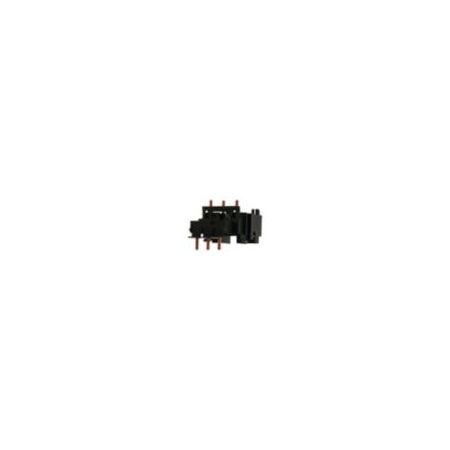

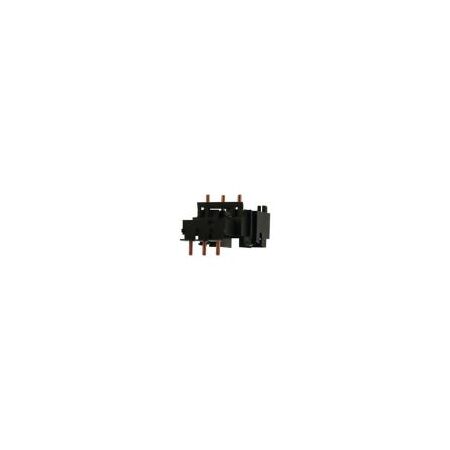

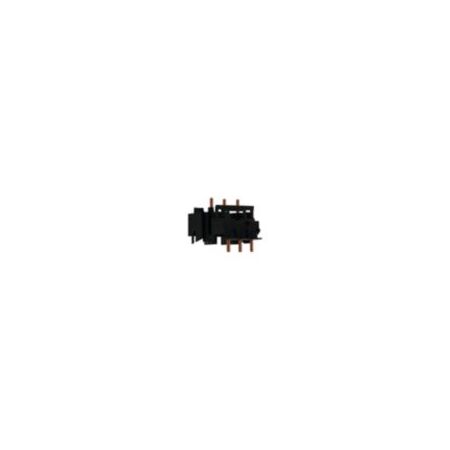

Wiring Module for DILM17-M38 | 32A Current | Screw Terminal Connections | Compact Design by Eaton

BRAND: Eaton
SKU: Y7-190312
$62.10 List price: $77.40
+ −
30 Days Return Delivery Options
Wiring module designed for DILM17-M38 contactors, featuring 32A current capacity and secure screw terminal connections—ideal for electrical panel wiring in industrial control systems. Built for reliable performance, with a compact design for easy integration in switchgear assemblies.

Product Name/Title: Wiring Module for DILM17-M38 | 32A Current | Screw Terminal Connections | Compact Design by Eaton

Brand: Eaton

SKU: Y7-190312

Alternatively Known As: PKZM0 Wiring Module, Eaton Wiring Set for DILM17-M38, PKZM0 Accessory Wiring Module

Technical Specifications
  • Rated operational voltage (Ue) - max: 690 VAC
  • Rated operational current for specified heat dissipation (In): 32 A
  • Connection type: Screw terminals
  • Ambient operating temperature range: -25 °C to 55 °C
  • Heat dissipation capacity Pdiss: 0 W
  • Static heat dissipation, non-current-dependent Pvs: 0 W
  • Certifications: UL, CSA, IEC/EN 60947-4-1, CE
  • Dimensions (H x L x W): 50mm x 75mm x 45mm
  • Weight: 0.028 kg
Key Features
  • Designed for use with DILM17-M38 contactors
  • Screw terminal connections for secure wiring
  • Meets product standard requirements for corrosion resistance, thermal stability, and UV resistance
  • Compact size suitable for integration in switchgear assemblies
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
  • Electrical panel wiring for DILM17-M38 contactors
  • Industrial control systems requiring wiring modules
  • Accessory for Eaton Moeller PKZM0 series motor protection
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Complies with standards ensuring safe and efficient electrical operation
Warranty Information

Standard Eaton warranty applies; refer to Eaton's official warranty policy for details.

Available Now

The Eaton PKZM0-XDM32ME Wiring Module is available for immediate purchase, ideal for industrial and commercial electrical panel wiring applications.

Product specifications (skuPage.190312.pdf, 62 Kb) [Download]
