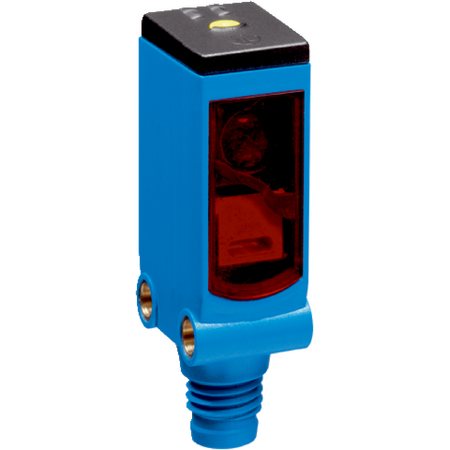

WL4S-3F3132 | Photoelectric sensors
The SICK WL4S-3F3132 is a compact photoelectric retro-reflective sensor designed for precise object detection in industrial automation, featuring a visible red LED, fast response, and robust IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WL4S-3F3132 | Photoelectric sensors
Brand: SICK
SKU: 1042075
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, SICK WL4S sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range: 0 m to 3 m (standard), up to 5 m max
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Adjustment: Single teach-in button
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Output type: PNP, dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Circuit protection: A, C, D
- Housing material: Plastic ABS
- Front screen: Plastic PMMA
- Cable: Plastic PVC, 3-pin M8 connector
- Enclosure rating: IP67, IP66
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 5 meters
- Polarisation filters for reliable detection
- Visible red light PinPoint LED with 650 nm wavelength
- Single teach-in button for easy adjustment
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
- Slim plastic ABS housing with IP67 and IP66 protection ratings
- Cable with M8 3-pin connector
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable design reduces waste and replacement frequency
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WL4S-3F3132 Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
