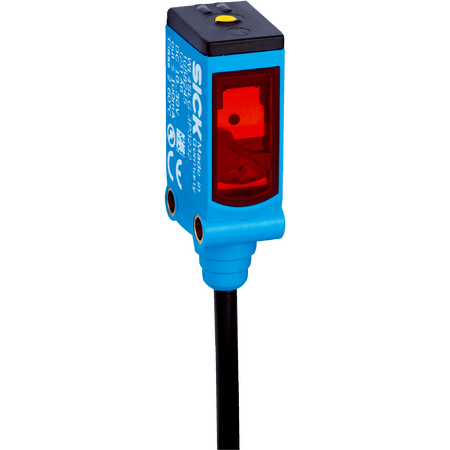

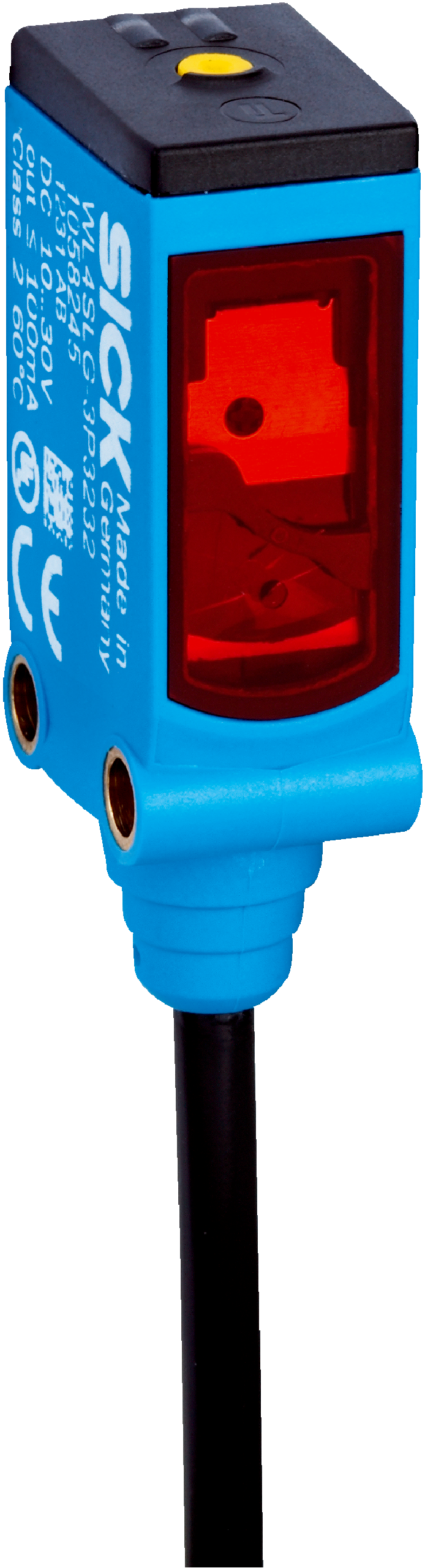

WL4SLGC-3P3052B01 | Photoelectric sensors
The SICK WL4SLGC-3P3052B01 is a high-performance photoelectric retro-reflective sensor designed for precise object detection in industrial automation, featuring laser technology, IO-Link communication, and robust IP66/IP67 rated housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WL4SLGC-3P3052B01 | Photoelectric sensors
Brand: SICK
SKU: 1119068
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Laser sensor, IO-Link sensor, Object detection sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range max: 0 m to 3.5 m
- Light source: Visible red laser, 650 nm wavelength
- Laser class: 1
- Adjustment: IO-Link and single teach-in button
- Mounting hole: M3
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Housing material: Plastic, Novodur
- Front screen material: Plastic, PMMA
- Connection: Cable with M8 male connector, 4-pin, 150 mm length
- Enclosure rating: IP66, IP67
- Operating temperature: -30 °C to +55 °C (extended)
- Communication: IO-Link COM2 (38.4 kBaud), cycle time 2.3 ms
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 3.5 m without reflector
- Visible red laser light source with 650 nm wavelength
- Laser class 1 safety compliant
- Polarisation filters included
- IO-Link communication interface with 38.4 kBaud data rate
- Light/dark switching PNP output with max 100 mA current
- High switching frequency up to 1000 Hz
- Slim plastic Novodur housing with IP66 and IP67 protection
- Operating temperature range from -30 °C to +55 °C (extended)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper alignment and connection to IO-Link systems.
Applications
- Industrial automation for object detection
- Detecting transparent and small objects
- Use in environments requiring precise sensing with laser technology
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP66/IP67 housing extends product life and reduces waste
- Compliant with RoHS directive for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK WL4SLGC-3P3052B01 Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
