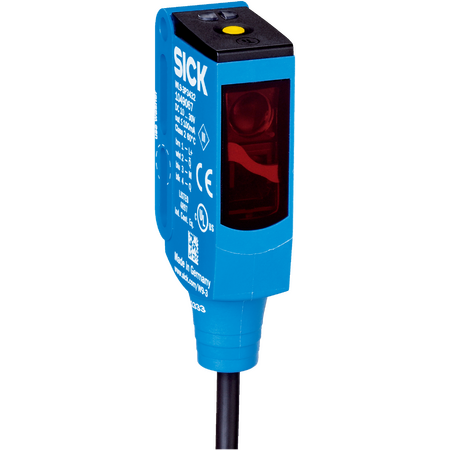

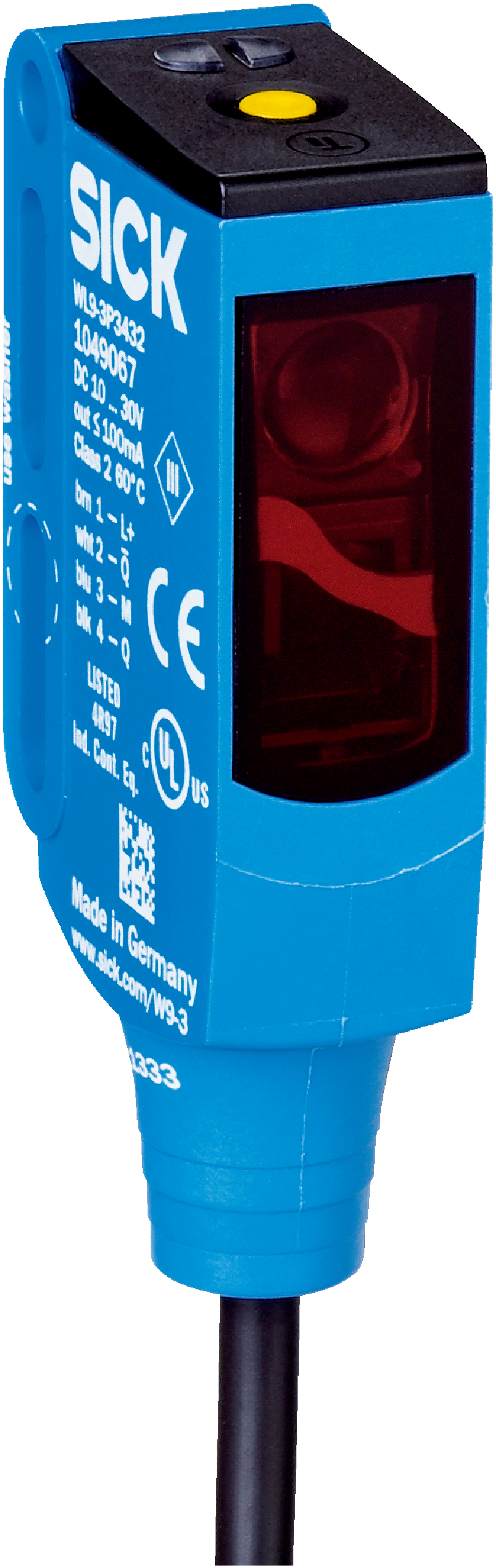

WL9G-3P1132 | Photoelectric sensors
The SICK WL9G-3P1132 is a photoelectric retro-reflective sensor designed for reliable detection of transparent objects with robust IP66/IP67/IP69K rated housing, suitable for industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WL9G-3P1132 | Photoelectric sensors
Brand: SICK
SKU: 1049081
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Transparent object sensor, Optical sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: 4-wire cable, 2 m length
- Cable material: Plastic, PVC
- Conductor cross section: 0.14 mm²
- Circuit protection: Types A, B, C
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Weight: 80 g
- Polarizing filter included
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Detects transparent objects effectively
- Visible red light with 650 nm wavelength
- PinPoint LED light source
- Single teach-in button for easy adjustment
- AutoAdapt feature for optimized sensing
- High switching frequency of 1,000 Hz
- Robust plastic VISTAL® housing with IP66, IP67, IP69K protection
- Wide ambient operating temperature range from -40°C to +60°C
- Polarizing filter included
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing
- Use in harsh environments requiring IP66/IP67/IP69K protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing reduces waste by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL9G-3P1132 Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and transparent object detection applications.
