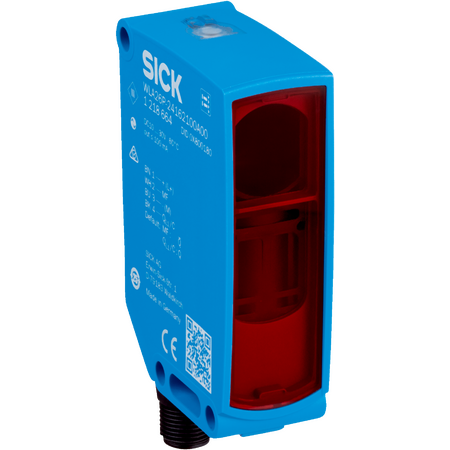

WLA26P-24114100ZZZ | Photoelectric sensors
The SICK WLA26P-24114100ZZZ is a durable photoelectric retro-reflective sensor designed for precise object detection in industrial environments, featuring a long sensing range and robust protection ratings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WLA26P-24114100ZZZ | Photoelectric sensors
Brand: SICK
SKU: 1222793
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK photoelectric sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range: 0 m to 18 m, recommended 0 m to 12 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Output type: 2 complementary push-pull outputs (PNP/NPN), dark switching
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Housing material: Plastic VISTAL® with PMMA front screen
- Connection: Male M12, 4-pin connector
- Protection rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 83mm x 53mm x 25mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 18 m with recommended range 0-12 m
- PinPoint LED visible red light with 635 nm wavelength
- LED indicators for alignment, power, and object detection status
- High shock and vibration resistance
- Protection class III with reverse polarity and short-circuit protection
- Operating temperature range from -40 °C to +60 °C
- Enclosure rating IP66, IP67, and IP69 for robust environmental protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and electrical connection according to safety standards.
Applications
- Object detection in industrial automation
- Detecting objects wrapped in film
- Use in harsh environments requiring IP66/IP67/IP69 protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WLA26P-24114100ZZZ Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
