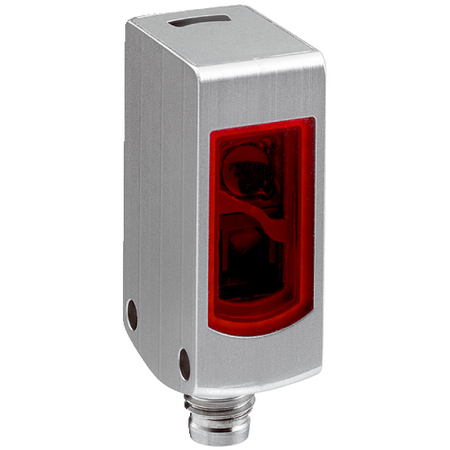

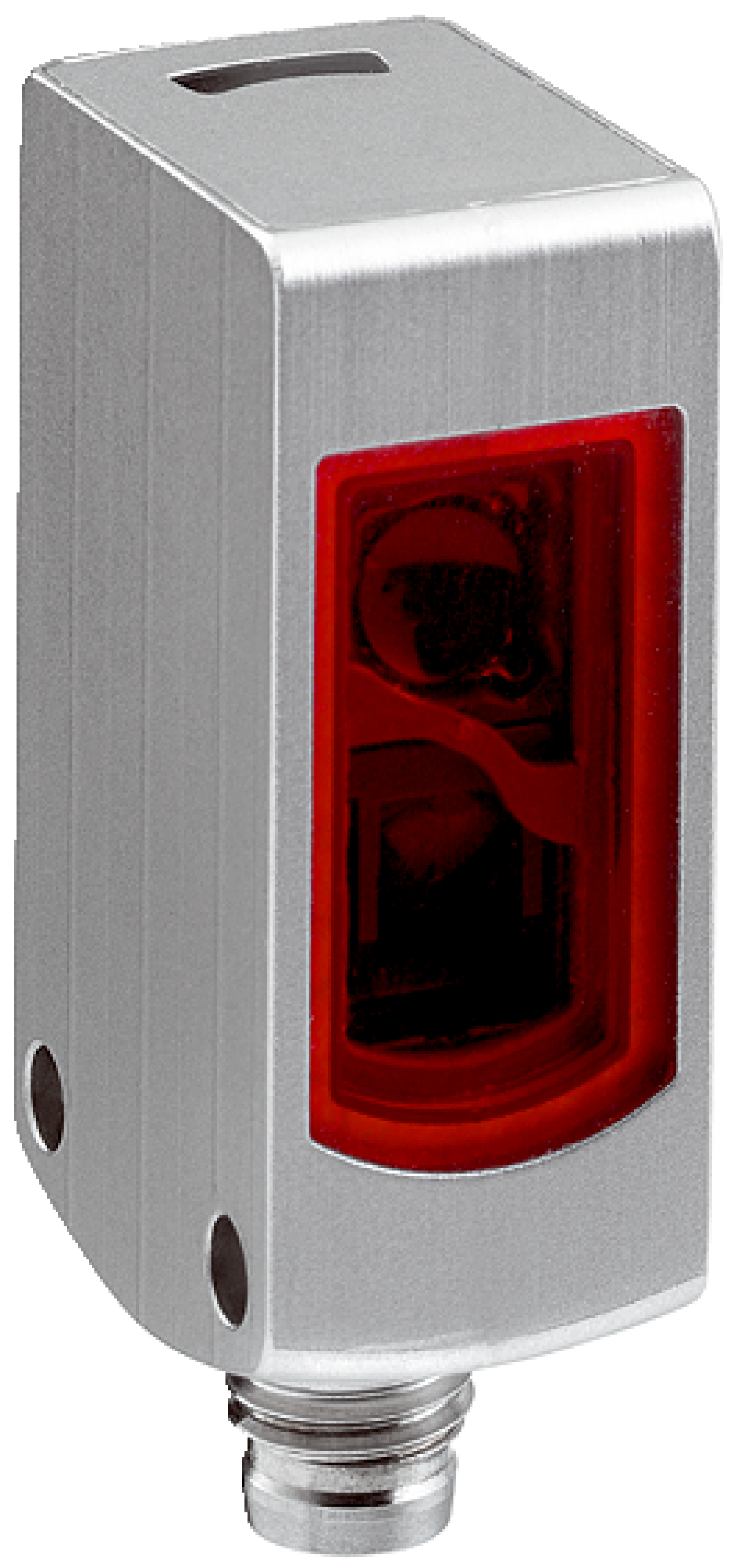

WLG4S-3P2234VS06 | Photoelectric sensors
The SICK WLG4S-3P2234VS06 is a durable photoelectric retro-reflective sensor designed for precise object detection in hygienic and washdown zones, featuring a slim stainless steel housing and advanced sensing capabilities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WLG4S-3P2234VS06 | Photoelectric sensors
Brand: SICK
SKU: 1069434
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Washdown photoelectric sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range: 0 m to 5 m max, 0 m to 3 m typical
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 45 mm at 1.5 m distance
- Adjustment: Cable and single teach-in button with external teach on PIN 2
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Housing: Metal stainless steel V4A (1.4404, 316L), slim design
- Front screen: Plastic PMMA
- Connection: Male connector M8, 4-pin
- Protection class: III
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +75 °C
- Dimensions (H x L x W): 45mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 5 meters without reflector
- Polarisation filters included
- PinPoint LED visible red light with 650 nm wavelength
- External teach function on PIN 2
- AutoAdapt feature for optimized sensing
- Slim stainless steel V4A housing suitable for washdown environments
- High protection rating: IP66, IP67, IP68, IP69K
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Hygienic and washdown zones
- Detecting transparent objects
- Industrial automation requiring precise object detection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient LED light source minimizes power consumption
- High protection ratings reduce need for frequent replacements in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WLG4S-3P2234VS06 Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
