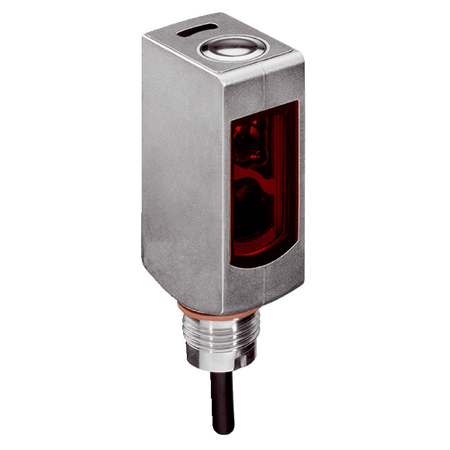

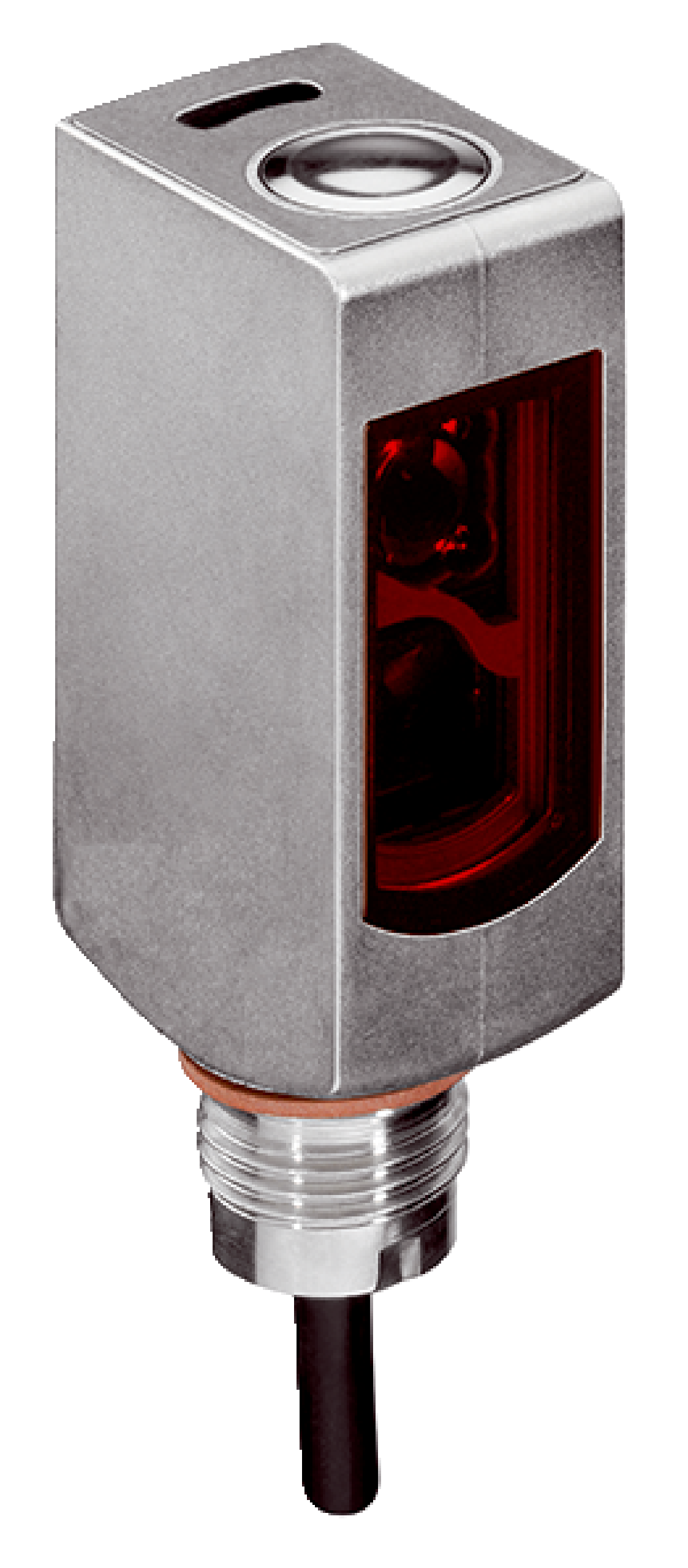

WLG4S-3V3232H | Photoelectric sensors
The SICK WLG4S-3V3232H is a robust photoelectric retro-reflective sensor designed for hygienic and washdown environments, featuring a stainless steel housing, visible red LED light, and advanced detection capabilities for transparent objects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WLG4S-3V3232H | Photoelectric sensors
Brand: SICK
SKU: 1048122
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, SICK photoelectric sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range: 0 m to 5 m
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 45 mm at 1.5 m
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP, dark switching
- Max output current: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Housing material: Stainless steel V4A (1.4404, 316L)
- Connection: Cable with M8 male connector, 4-pin, 150 mm cable length
- Protection class: III
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +75 °C
- Dimensions (H x L x W): 63mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 5 meters
- Polarisation filters included
- PinPoint LED visible red light with 650 nm wavelength
- Single teach-in button for easy adjustment
- Alarm output and AutoAdapt functionality
- Slim stainless steel V4A housing for hygienic design
- High protection rating: IP66, IP67, IP68, IP69K
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Hygienic and washdown zones
- Detecting transparent objects
- Industrial automation and safety systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces waste and extends product life
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK WLG4S-3V3232H Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and hygienic environment applications.
